Home / Commercial Displays / iiyama LH5575UHS-B2AG 54.6" Signage Display
iiyama

iiyama LH5575UHS-B2AG 54.6" Signage Display

£840.86inc. VAT
£700.72 ex. VAT
Low stock (5 left), order soon
1
  • Visa
  • Mastercard
  • American Express
  • PayPal

Or 3 interest-free payments of £280.29 with PayPal Pay in 3.

4.5 on Trustpilot · 14 reviews

Seen it cheaper? We price-match genuine like-for-like quotes. How it works

Bought in the UK, backed in the UKWhy it matters →
  • In UK stock, ships from the UK
  • UK manufacturer warranty
  • UK-based engineers
  • No import duty or customs charges
  • GBP pricing, UK VAT invoices
Return within 14 days
3 Year Warranty
Installation services available
Key specifications
DesignThin bezel
Diagonal54.6", 139cm
PanelIPS, Anti-Glare Coated Glass, haze 25%
Native resolution3840 x 2160 @60Hz (8.3 MegaPixels 4K UHD)
Aspect ratio16:9
Panel brightness500 cd/m²
Static contrast1200:1
Response time (GTG)8ms
All 65 specifications
Talk to an Expert

Description

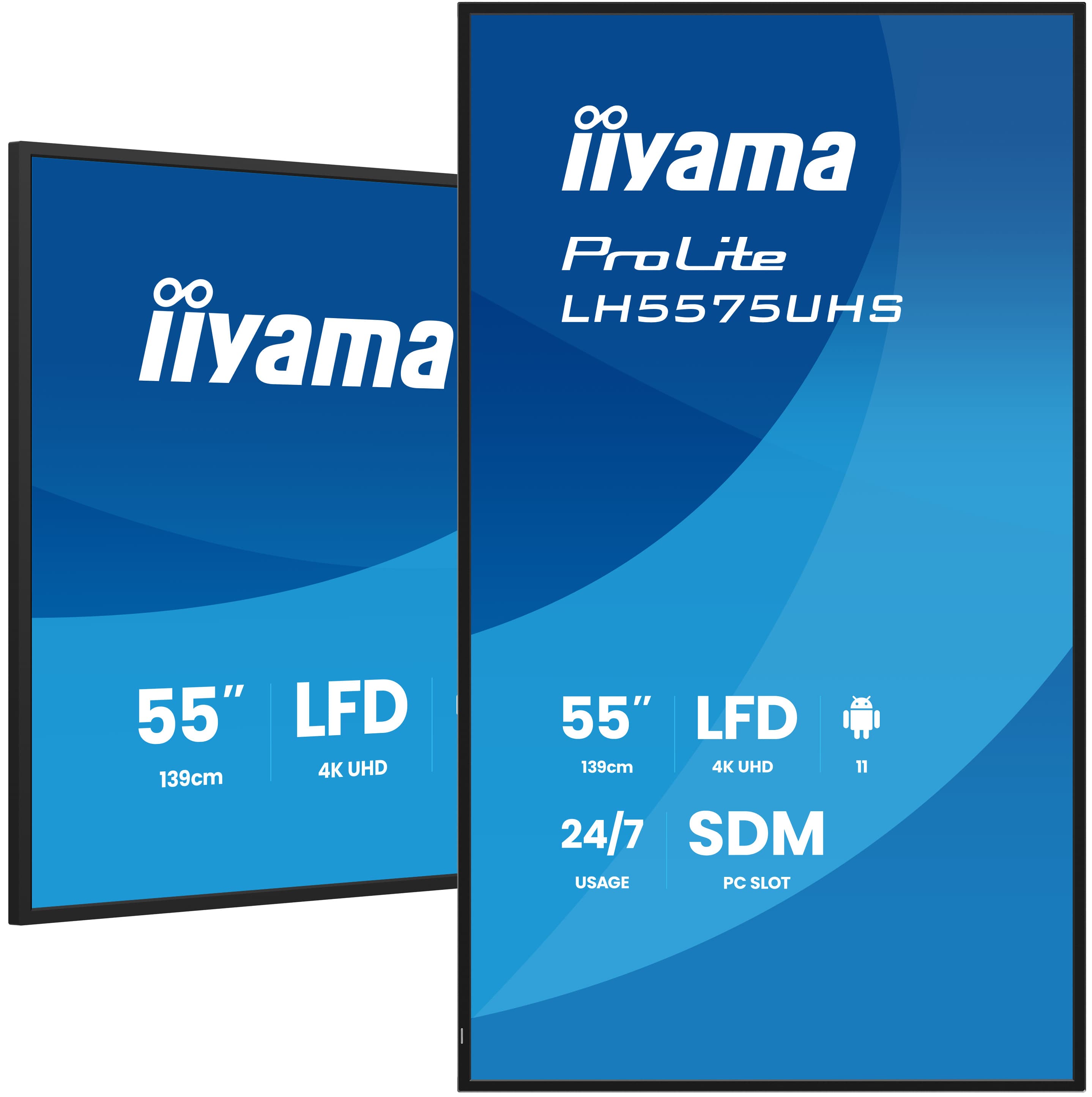

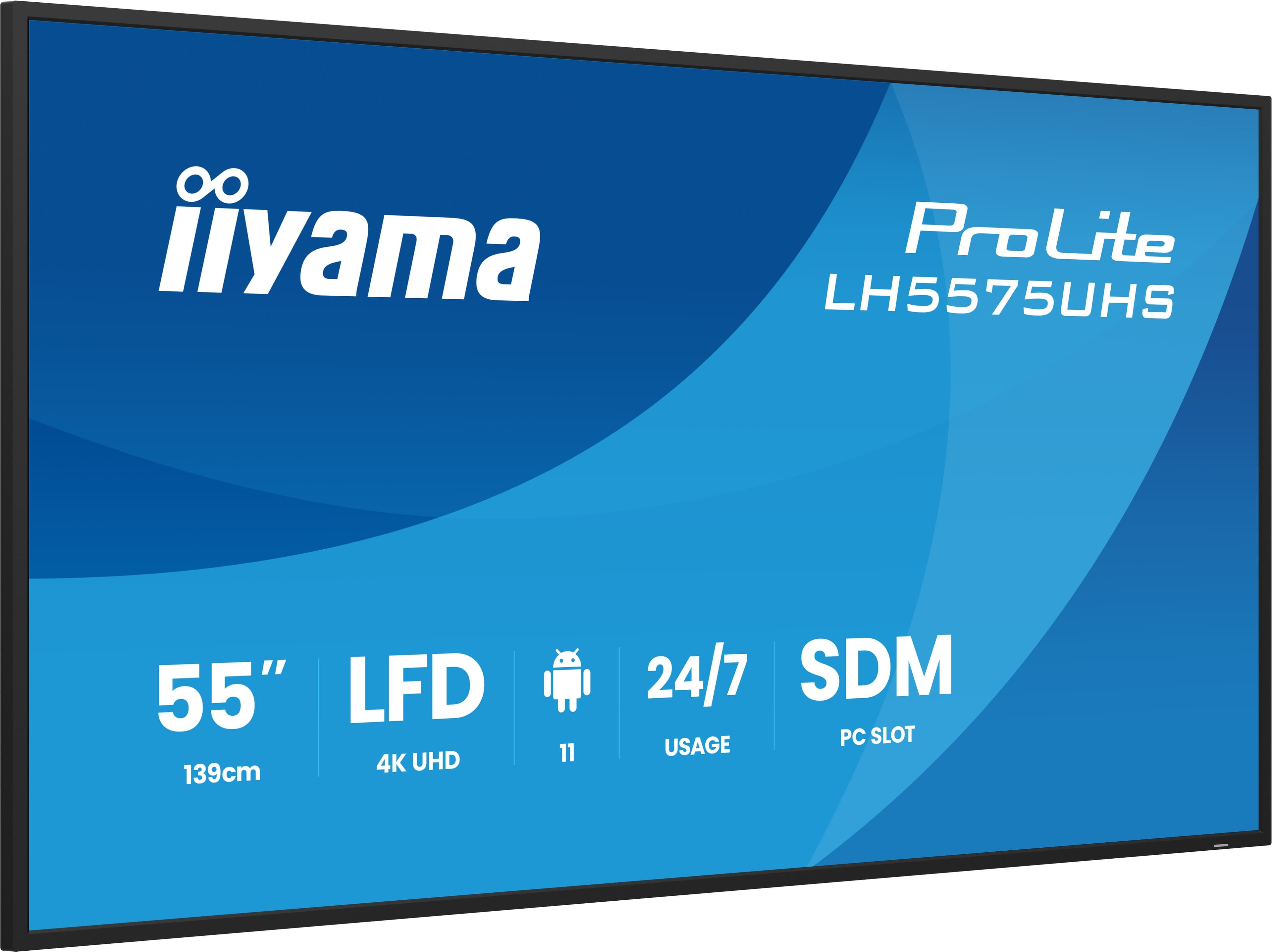

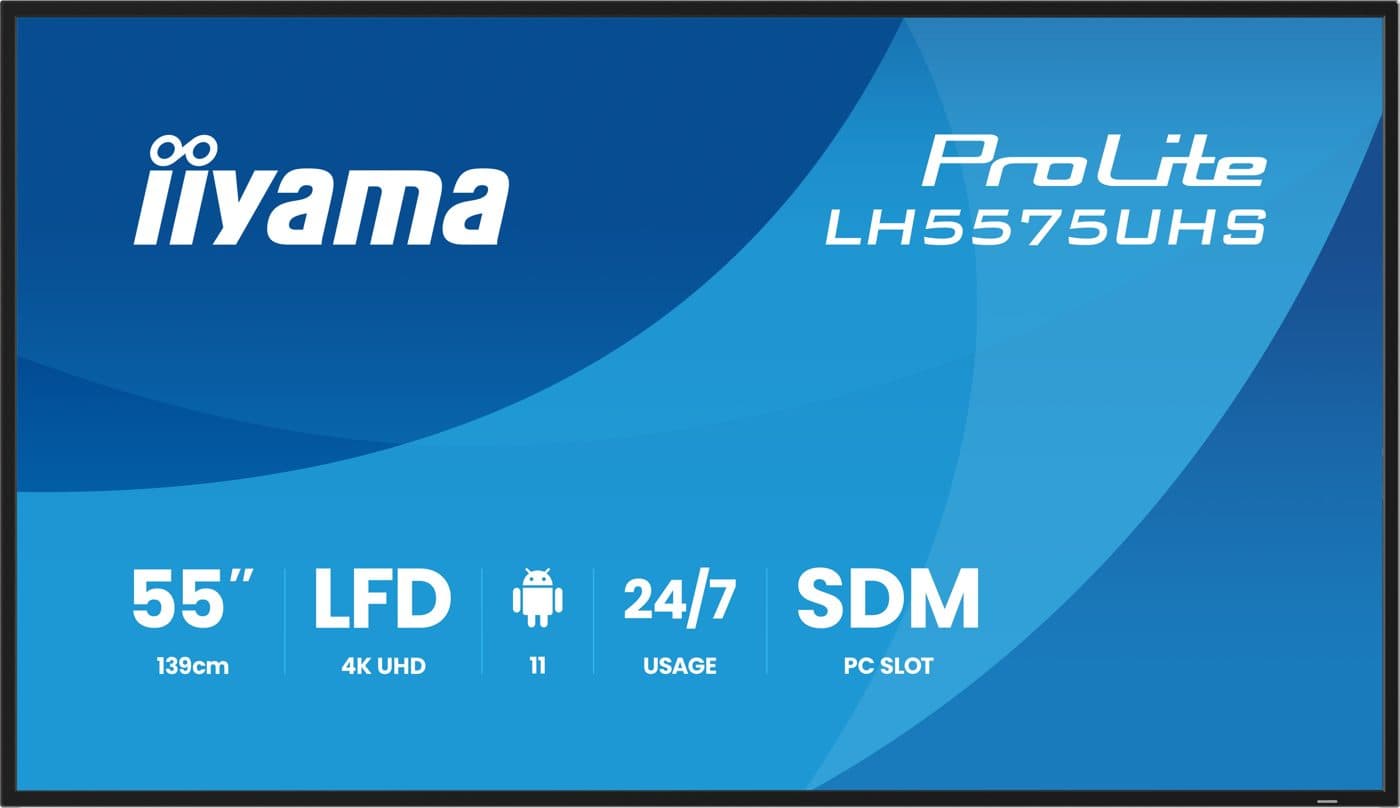

ProLite LH5575UHS-B2AG 55" 4K UHD Professional Digital Signage 24/7 display featuring Android OS, FailOver and Intel® SDM slot Choose non-stop high performance and reliability with the ideal all-in-one signage solution for mission critical environments. The LH5575UHS from iiyama can be operated in landscape or portrait orientation in continual around the clock environments, 24/7 without any interruption. Its versatility can be adapted to your industry’s display needs. On-board Android 11 OS means you can easily customize the display to your needs and install applications directly to it. The on-board iiSignage² (Content Management System) gives you total control of your messaging and advertising remotely and safely. The SDM Slot provides embedded PC option for total flexibility, security and control, while the FailOver feature ensures your content is always actively displayed through your

Also in this range:54.6" LH5575UHS-B1AG 55" LH5064UHS-B1AG 55" LH5564UHS-B1AG 55" LH5560UHS-B2AG Full specifications Datasheet Compare alternatives

Technical specifications

DesignThin bezel
Diagonal54.6", 139cm
PanelIPS, Anti-Glare Coated Glass, haze 25%
Native resolution3840 x 2160 @60Hz (8.3 MegaPixels 4K UHD)
Aspect ratio16:9
Panel brightness500 cd/m²
Static contrast1200:1
Response time (GTG)8ms
Viewing zonehorizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
Colour support1.07B 8bit+FRC (NTSC 72%)
Horizontal Sync28 - 160kHz
Viewable area W x H1209.6 x 680.4mm, 47.6 x 26.8"
Bezel width (sides, top, bottom)14mm, 14.75mm, 14.75mm
Pixel pitch0.315mm
Bezel colour and finishblack, matte
Digital signal inputHDMI x3 (2.0, max. 3840x2160 @60Hz, ARC on HDMI #3)DisplayPort x1 (1.2, max. 3840x2160 @60Hz)
Monitor control inputRS-232c x1 (2.5mm sub-mini jack)RJ45 (LAN) x1IR x1 (3.5mm stereo mini)
Digital signal outputDisplayPort x1 (max. 3840x2160 @60Hz, MST-out Daisy Chain v.1.2)
Audio outputMini jack x1 (3.5mm)Speakers 2 x 10W
Monitor control outputRS-232c x1 (2.5mm sub-mini jack)IR loop through x1 (3.5mm stereo mini)
HDCP2.2
USB portsx2 (2.0)
Integrated softwareAndroid 11 OS, iiSignage², iiControl, iiShare, EShare, FailOver
WiFiyes (Built-in, 802.11ac)
HardwareCPU: A311D2 Octa-core A73*4+A53*4, GPU: G52 MP8, RAM: 4GB, ROM: 32GB
ExtraIntel® SDM-L, micro SD card slot
Max. non-stop operating time24/7
Anti image retentionyes
Video wall / daisy chainYes, from any input signal, (MST-output via DP-Out)
Media playbackyes
Housing (bezel)metal
OSD languagesEN, DE, FR, ES, IT, CN, RU, JP, CZ, NL, PL, SV, FI, DA, NB
Control buttonsPower (longpress for Quick Menu)
User controlspicture (brightness, contrast, sharpness, black level, tint, colour, noise reduction, gamma selection, colour temp., colour control, picture reset), screen (zoom mode, custom zoom, screen reset), audio (balance, treble, bass, volume, audio out, max. volume, min. volume, mute, audio reset, audio out sync, speaker setting), configuration 1 (Android launcher, switch on state, panel saving, RS232-routing, boot on source, WOL, configuration 1 reset, factory reset), configuration 2 (OSD timeout, OSD H-Position, OSD V-position, system rotation, info OSD, logo and animation, logo setting, animation setting, monitor ID, group ID, monitor info, DP version, DP monitors, HDMI version, configuration 2 reset), advanced options (no signal image, motorized stand, IR control, power LED light, tiling, off timer, schedule, HDMI with One Wire, HDMI with One Wire power off, Signal FailOver, language, OSD transparency, power saving, auto power off, SDM settings, advanced options reset), Android settings (network & internet, apps & notifications, display, signage display, security, language & input, date & time, about device)
Plug&PlayDDC2B
Fanless designyes
VESA mounting400 x 400mm
Mini PC mountVESA 75 x 75, VESA 100 x 100
Operation temperature range0°C - 40°C
Storage temperature range- 20°C - 60°C
MTBF50.000 hours (excluding backlight)
Cablespower (1.8m), HDMI (1.8m), RS-232c (1.8m)
Guidesquick start guide, safety guide
OtherStickers for screw holes, wire buckles
Remote controlyes (batteries included)
Power supply unitinternal
Power supplyAC 100 - 240V, 50/60Hz
Power usage127W typical, 0.5W stand by, 0.3W off mode
RegulationsCB, CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH
Energy efficiency class (Regulation (EU) 2017/1369)G
REACH SVHCabove 0.1%: Lead, Lead monoxide
Product dimensions W x H x D1237.5 x 710 x 55mm
Box dimensions W x H x D1386 x 845 x 130mm
Weight (without box)15.2kg
Weight (with box)20.6kg
EAN code4948570125258
User manualLH43_50_55_65_75_8675UHS-B2AG-usermanual-e.pdf
Technical specificationProLite LH5575UHS-B2AG - gb_en.pdf
DrawingLH5575UHS_Drawing.pdf
EU Energy LabelLH5575UHS-B2AG EU Energy Label (2265510).pdf
3D-File (.stp)LH5575UHS.zip
RS232-LAN CommandsLHxx75_RS232-LAN_commands_2025_04.pdf
EShare Network RequirementsEShare Network Requirements v7.4-e.pdf
CE DocumentLH5575UHS CE DoC.pdf
OrientationLandscape / Portrait
