Home / 20 - 31" Touch Screens / iiyama T2234MSC-B1S 21.5" Touch Monitor
iiyama

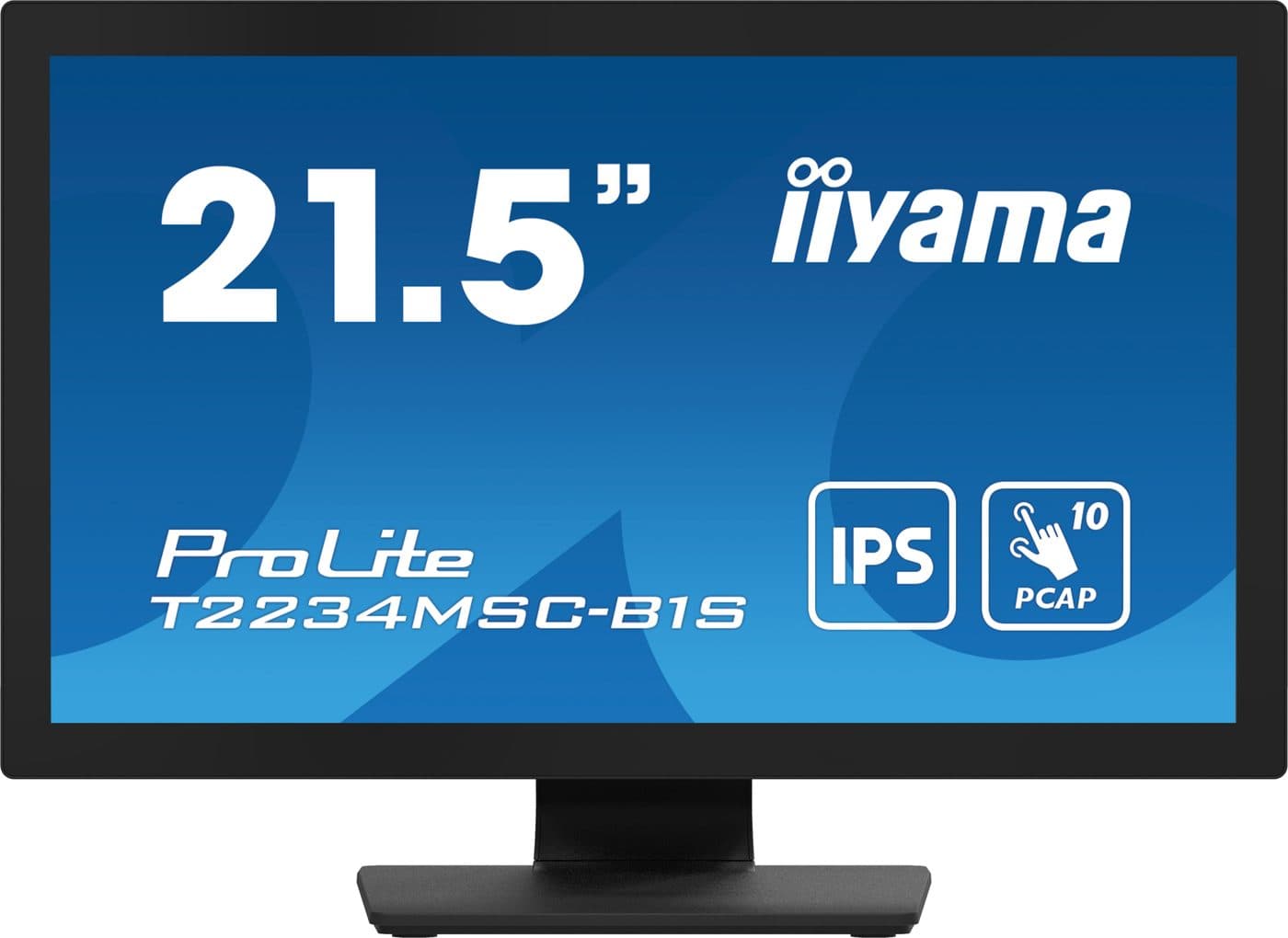

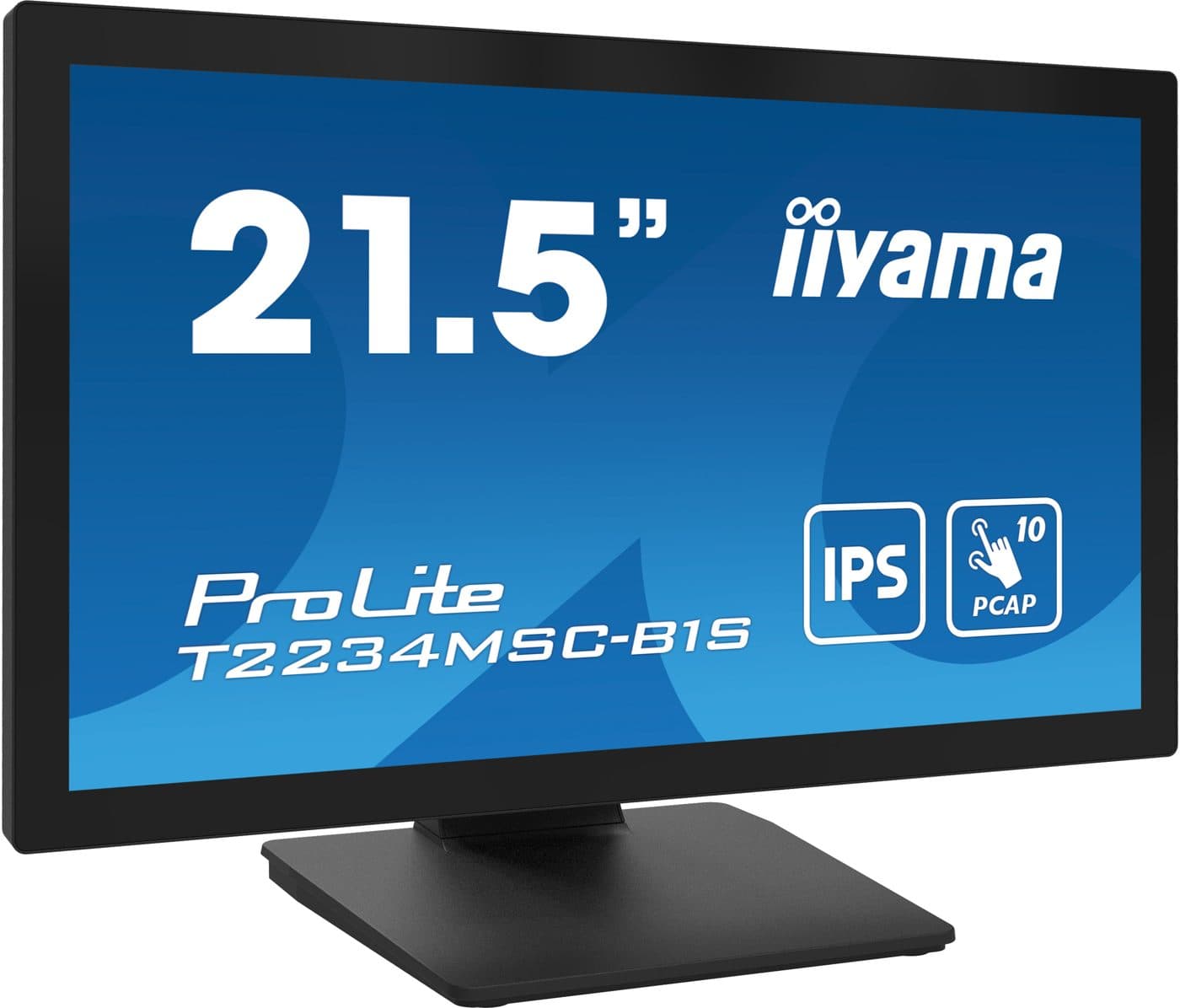

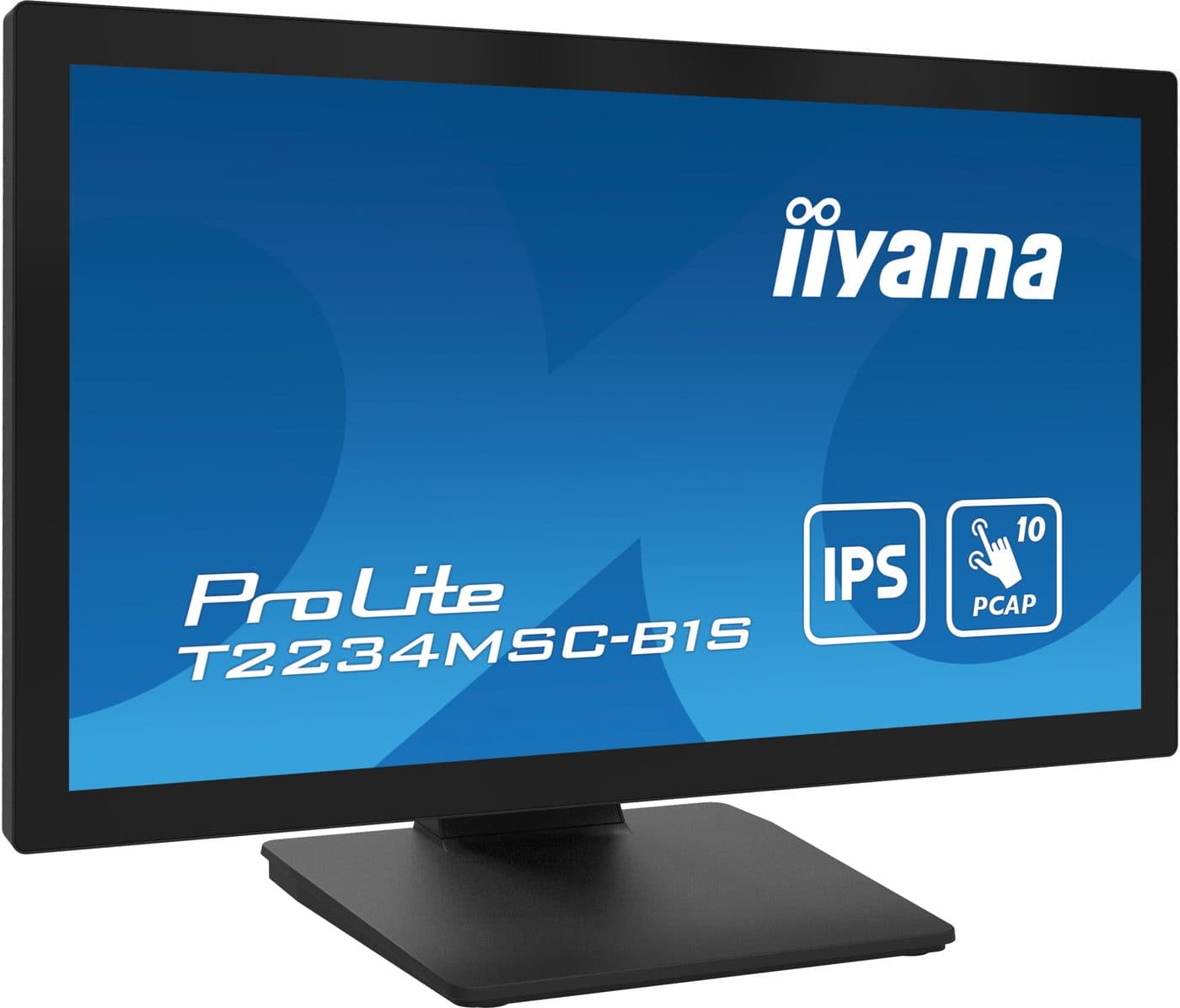

iiyama T2234MSC-B1S 21.5" Touch Monitor

£457.93inc. VAT
£381.61 ex. VAT
Low stock (5 left), order soon
1
  • Visa
  • Mastercard
  • American Express
  • PayPal

Or 3 interest-free payments of £152.65 with PayPal Pay in 3.

4.5 on Trustpilot · 14 reviews

Seen it cheaper? We price-match genuine like-for-like quotes. How it works

Bought in the UK, backed in the UKWhy it matters →
  • In UK stock, ships from the UK
  • UK manufacturer warranty
  • UK-based engineers
  • No import duty or customs charges
  • GBP pricing, UK VAT invoices
Return within 14 days
3 Year Warranty
Installation services available
Key specifications
Diagonal21.5", 54.6cm
PanelIPS
Native resolution1920 x 1080 (2.1 megapixel Full HD)
Aspect ratio16:9
Panel brightness350 cd/m²
Brightness305 cd/m² with touch
Light transmittance87%
Static contrast1 000:1 with touch
All 57 specifications
Talk to an Expert

Description

ProLite T2234MSC-B1S 22" Full HD 10pt touchscreen featuring IPS panel technology, touch through glass function and anti fingerprint coating The ProLite T2234MSC-B1S uses 10 pt Projective Capacitive touch technology, built into an eye catching bezel with edge-to-edge glass. Featuring IPS technology, it offers exceptional colour performance and wide viewing angles, making it a perfect display for Interactive Digital Signage, kiosk integrators, Instore Retail, Gaming and Interactive Presentations. In addition to the superb image quality, the monitor comes with IP65 rating, which means it is dust and water resistant and with Touch-Through-Glass technology delivering seamless and accurate touch response for true kiosk integration or behind-glass-retail. 15.6" 1920 x 1080 22" 1920 x 1080

Also in this range:15" model 17" model 19" model Full specifications Datasheet Compare alternatives

Technical specifications

Diagonal21.5", 54.6cm
PanelIPS
Native resolution1920 x 1080 (2.1 megapixel Full HD)
Aspect ratio16:9
Panel brightness350 cd/m²
Brightness305 cd/m² with touch
Light transmittance87%
Static contrast1 000:1 with touch
Response time (GTG)8ms
Viewing zonehorizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
Colour support16.7mln
Horizontal Sync30.0 - 84.0kHz
Viewable area W x H476.0 x 267.7mm, 18.7 x 10.5"
Pixel pitch0.247mm
Bezel colour and finishblack, matte
Touch technologyprojective capacitive
Touch points10 (HID, only with supported OS)
Touch methodstylus, finger, glove (latex)
Touch interfaceUSB
Supported operating systemsAll iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Through-Glass6mm
Palm rejectionyes
Analog signal inputVGA x1
Digital signal inputHDMI x1DisplayPort x1
Audio outputSpeakers 2 x 3W
HDCPyes
ExtraAnti-fingerprint coating, touch through-glass
Glass thickness2.5mm
Glass hardness7H
Water and dust protectionIP65 (front)
OSD key lockyes
OSD languagesEN, DE, FR, ES, IT, CN, JP
Control buttonsMenu, Scroll up/ Brightness, Scroll down/ Mute, Select, Power
User controlspicture (contrast, brightness, H.position, V.position, phase, clock, auto adjust), advanced (color temp., sharpness), OSD (time out, position, H-position, V-position,Touch switch), option (reset, language, source select, display mode, volume, mute, factory)
Plug&PlayDDC2B
Orientationlandscape, portrait, face-up
Tilt angle90° up; 5° down
VESA mounting100 x 100mm
Cable management systemyes
Cablespower, USB, HDMI, Audio, DP
Guidesquick start guide, safety guide
OtherAC adapter
Cable coveryes
Power supply unitexternal
Power supplyDC 12 V
Power usage21W typical, 1.5W stand by, 0.3W off mode
RegulationsCE, EAC, RoHS support, ErP, WEEE, cULus, VCCI, REACH, UKCA
Energy efficiency class (Regulation (EU) 2017/1369)E
REACH SVHCabove 0.1%: Lead
Product dimensions W x H x D517.5 x 374 x 239.5mm
Weight (without box)5.9kg
EAN code4948570122226
Related productsRC TOUCHV01
User manualT2234MSC-B1S-usermanual-e-revC.pdf
Technical specificationProLite T2234MSC-B1S - gb_en.pdf
DrawingT2234MSC-B1S.pdf
EU Energy LabelT2234MSC-B1S EU Energy Label (1531684).pdf

See the 21.5" on your wall, to scale
