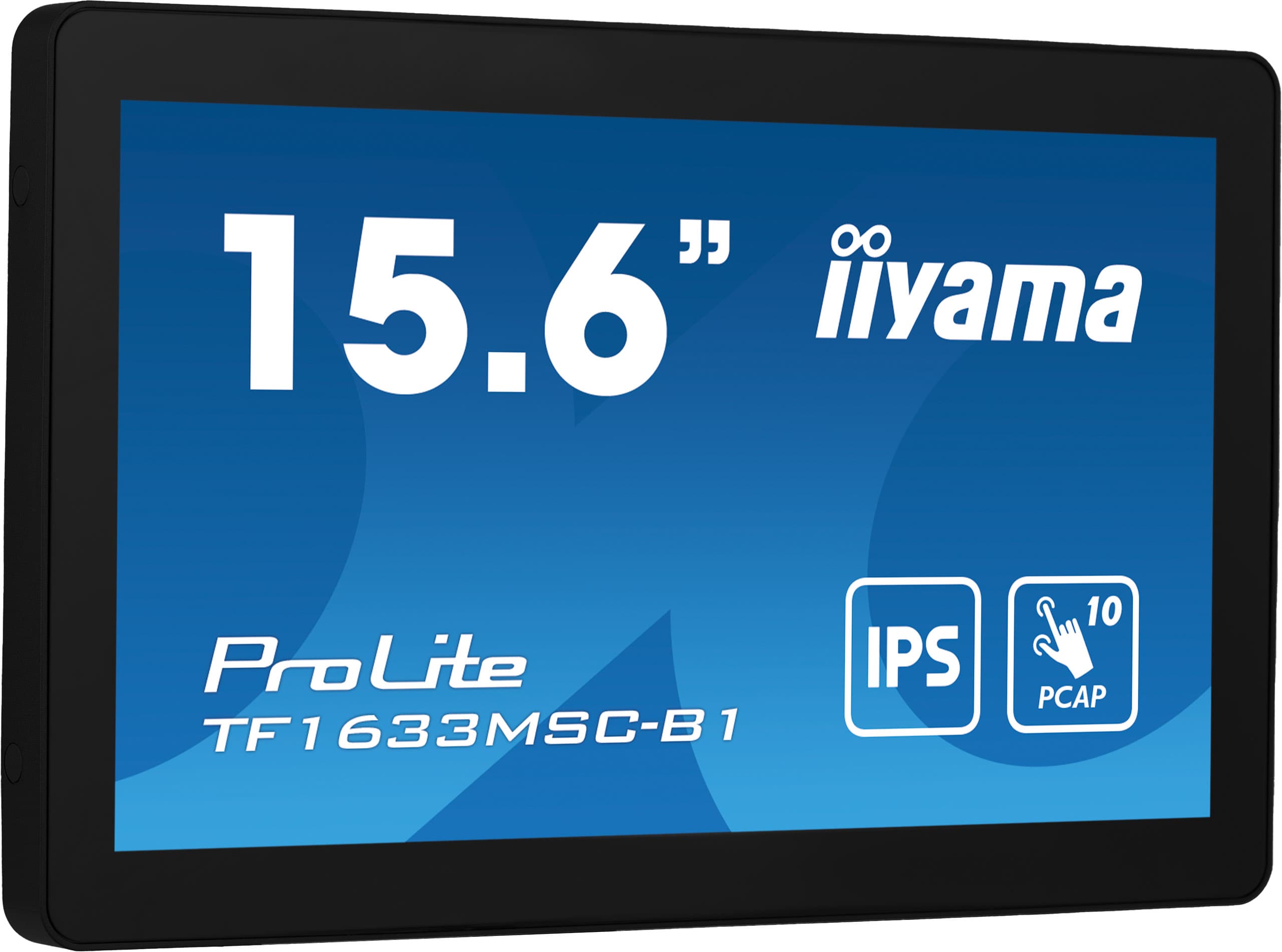

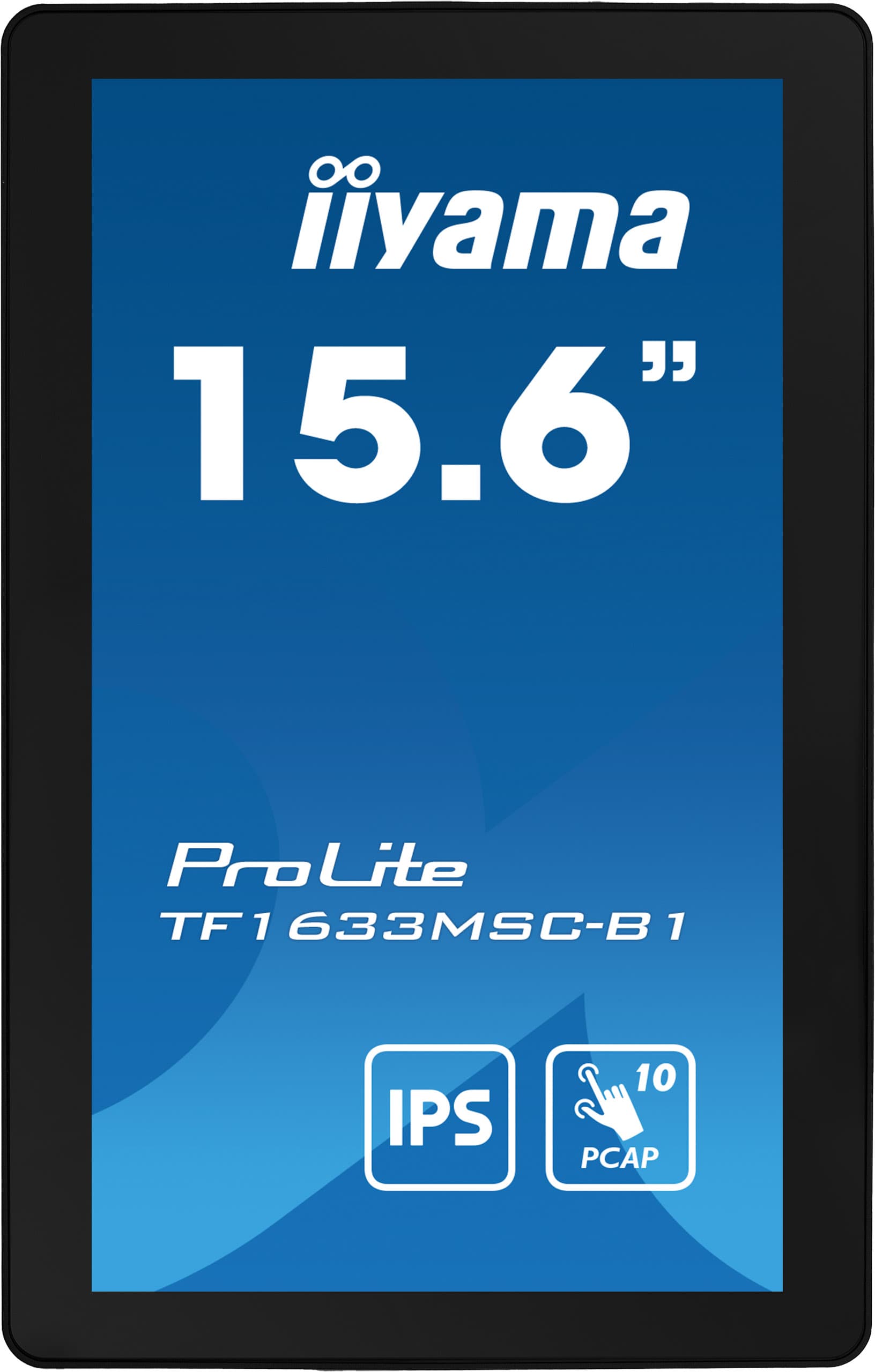

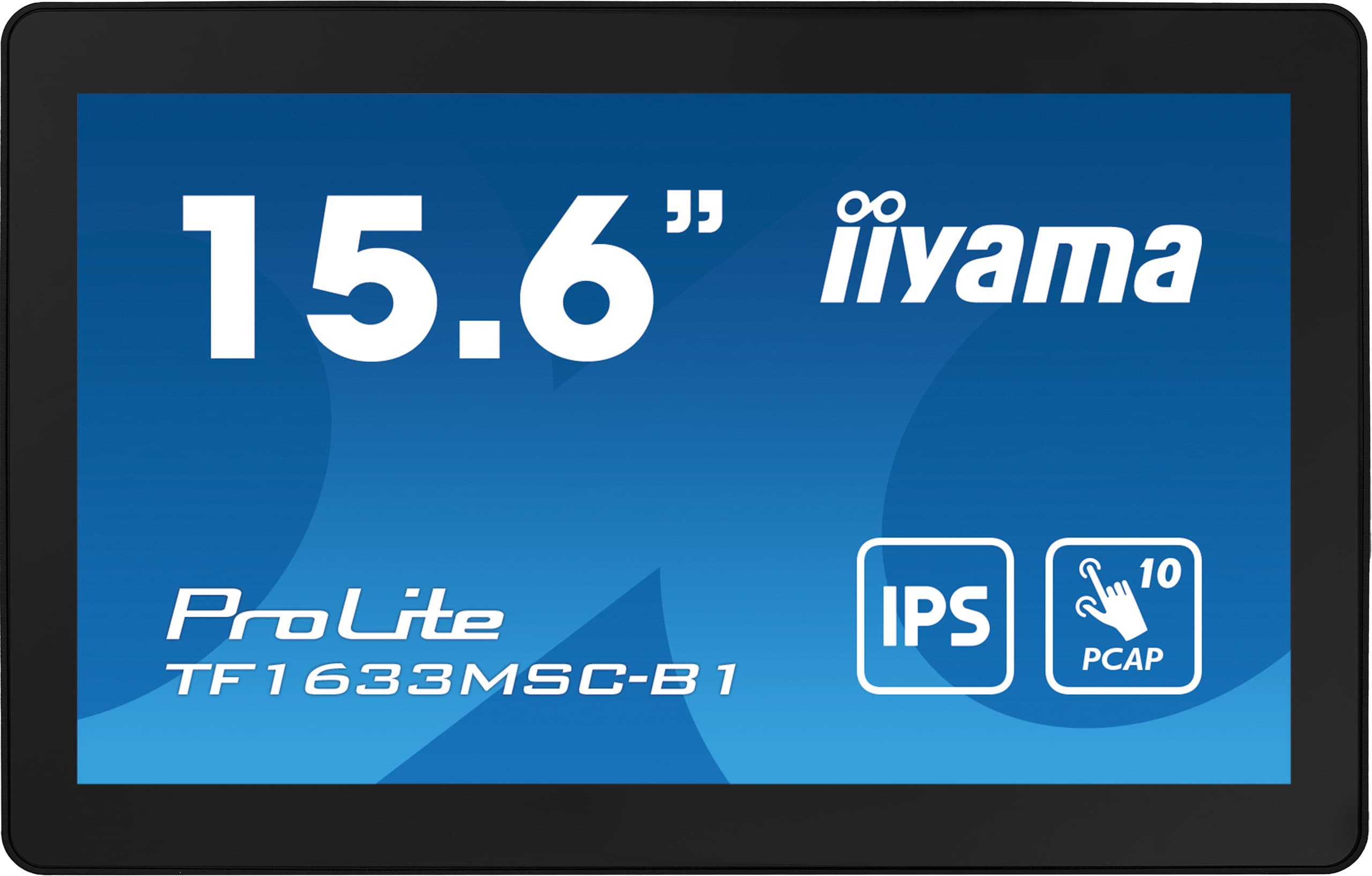

iiyama TF1633MSC-B1 15.6" Open Frame Touch Monitor

Name: iiyama TF1633MSC-B1 15.6" Open Frame Touch Monitor
Brand: iiyama
SKU: TF1633MSC-B1
Price: 283.32 GBP
Availability: InStock

Return within 14 days

3 Year Warranty

Installation services available

£283.32inc. VAT

£236.10 ex. VAT

In stock, dispatched within 2 working days

Visa
Mastercard
American Express
PayPal

Or 3 interest-free payments of £94.44 with PayPal Pay in 3.

4.5 on Trustpilot · 14 reviews

Seen it cheaper? We price-match genuine like-for-like quotes. How it works

Bought in the UK, backed in the UKWhy it matters →

In UK stock, ships from the UK
UK manufacturer warranty
UK-based engineers
No import duty or customs charges
GBP pricing, UK VAT invoices

Return within 14 days

3 Year Warranty

Installation services available

Key specifications

DesignEdge to edge glass

Diagonal15.6", 39.5cm

PanelIPS

Native resolution1920 x 1080 @60Hz (2.0 megapixel)

Aspect ratio16:9

Panel brightness450 cd/m²

Brightness385 cd/m² with touch

Light transmittance85%

All 60 specifications

Talk to an Expert

Description

ProLite TF1633MSC-B1 15.6" PCAP 10 points multi-touch open frame monitor with edge-to-edge glass and IPS panel technology The ProLite TF1633MSC-B1 uses projective capacitive touch technology, built into an eye catching bezel with edge-to-edge glass. The screen guarantees high durability, scratch-resistance, clarity and a perfect picture performance. Featuring IPS Panel Technology and Full HD (1920x1080) resolution, it offers natural, highly accurate colours and wide viewing angles. The integrated cable management system hides all the cables. In addition to the superb image quality, the screen comes with an IP54 rating, which means the screen and bezel is dust and water resistant from the front. A perfect solution for kiosk integrators and Instore Retail. 15.6" 1920 x 1080 15.6" 1920 x 1080

Also in this range:21.5" model 24" TF2438MSC-B2 24" TF2438MSC-B1 27" model Full specifications Datasheet Compare alternatives

Technical specifications

DesignEdge to edge glass

Diagonal15.6", 39.5cm

PanelIPS

Native resolution1920 x 1080 @60Hz (2.0 megapixel)

Aspect ratio16:9

Panel brightness450 cd/m²

Brightness385 cd/m² with touch

Light transmittance85%

Static contrast1000:1

Response time (GTG)5ms

Viewing zonehorizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°

Colour support16.7mln

Horizontal Sync30 - 68kHz

Viewable area W x H344.2 x 193.6mm, 13.6 x 7.6"

Pixel pitch0.179mm

Bezel colour and finishblack, matte

Reommended usageretail

Touch technologyprojective capacitive

Touch points10 (HID, only with supported OS)

Touch methodstylus, finger, glove (latex)

Palm rejectionyes

Digital signal inputHDMI x1DisplayPort x1

Audio outputSpeakers 2 x 2W

HDCPyes

USB HUBx2 (2.0 (DC5V, 500mA))

Water and dust protectionIP54 (front)

OSD key lockyes

OSD languagesEN, DE, FR, ES, IT, PT, CN, RU, JP, CZ, NL, PL

Control buttonsPower, Menu, Volume +, Volume -, Input

User controlsLuminance (contrast, brightness, i-Style color, adv. contrast, overdrive), image setup (aspect ratio), color temp., OSD setup (H. position, V. position, timeout, language, touch wake up), extra (input select, DDC/CI, reset, opening logo, LED, volume, information)

ConvenienceKensington-lock™ prepared

Blue light reduceryes

Plug&PlayDDC2B

Tilt angle90° up; 5° down

Fanless designyes

VESA mounting100 x 100mm

Cable management systemyes

MTBF50 000 hours (excluding backlight)

Cablespower, USB, HDMI

Guidesquick start guide, safety guide

OtherAC adapter

Cable coveryes

Power supply unitexternal

Power supplyDC 12 V

Power usage12W typical, 8W stand by, 0.5W off mode

RegulationsCE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH, UKCA

Energy efficiency class (Regulation (EU) 2017/1369)C

REACH SVHCabove 0.1%: Lead

Product dimensions W x H x D389 x 246.5 x 45.5mm

Box dimensions W x H x D475 x 343 x 169mm

Weight (without box)2kg

Weight (with box)3.9kg

EAN code4948570122530

Product seriesProLite T1633MSC-B1

User manualT_TF1633MSC-B1-usermanual-e-revB.pdf

Technical specificationProLite TF1633MSC-B1 - gb_en.pdf

DrawingTF1633MSC-dim.pdf

EU Energy LabelTF1633MSC-B1 EU Energy Label (1629699).pdf

UK Energy LabelTF1633MSC-B1 UK Energy Label (1629699).pdf

CE & TUVT1633MC-1 CE_TUV.pdf
