Home / 20 - 31" Touch Screens / iiyama TW2424AS-W3P 23.8" Touch Panel PC
iiyama

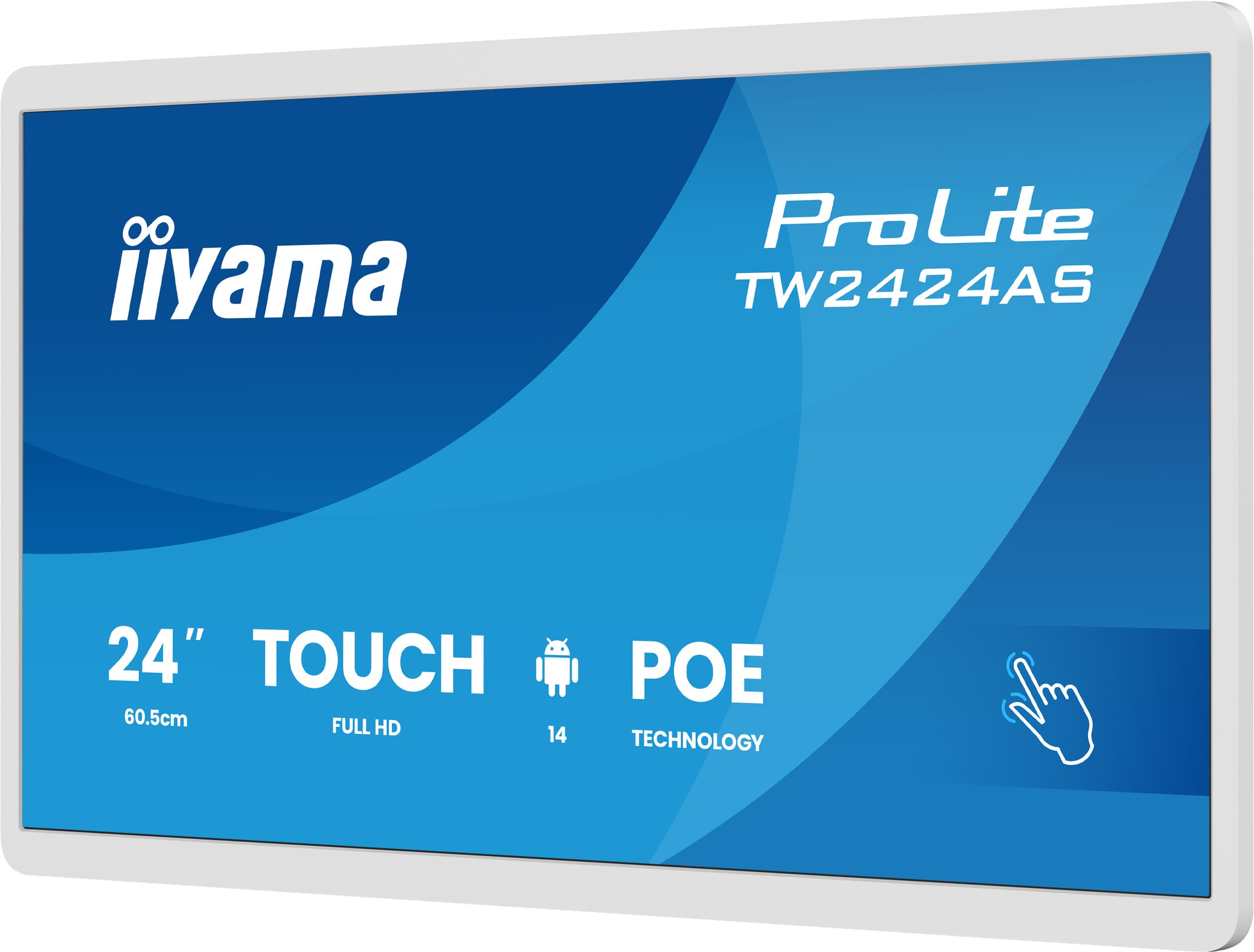

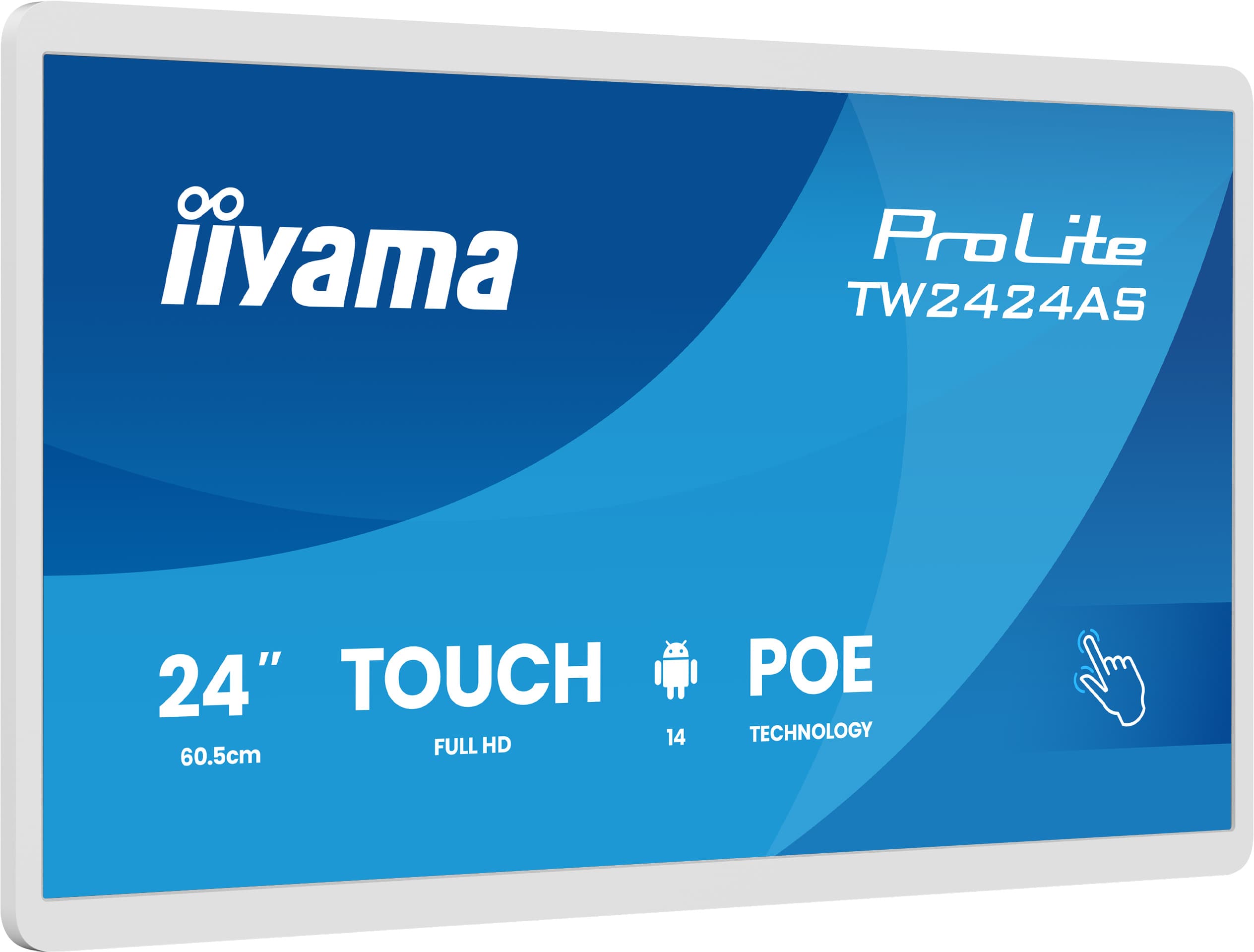

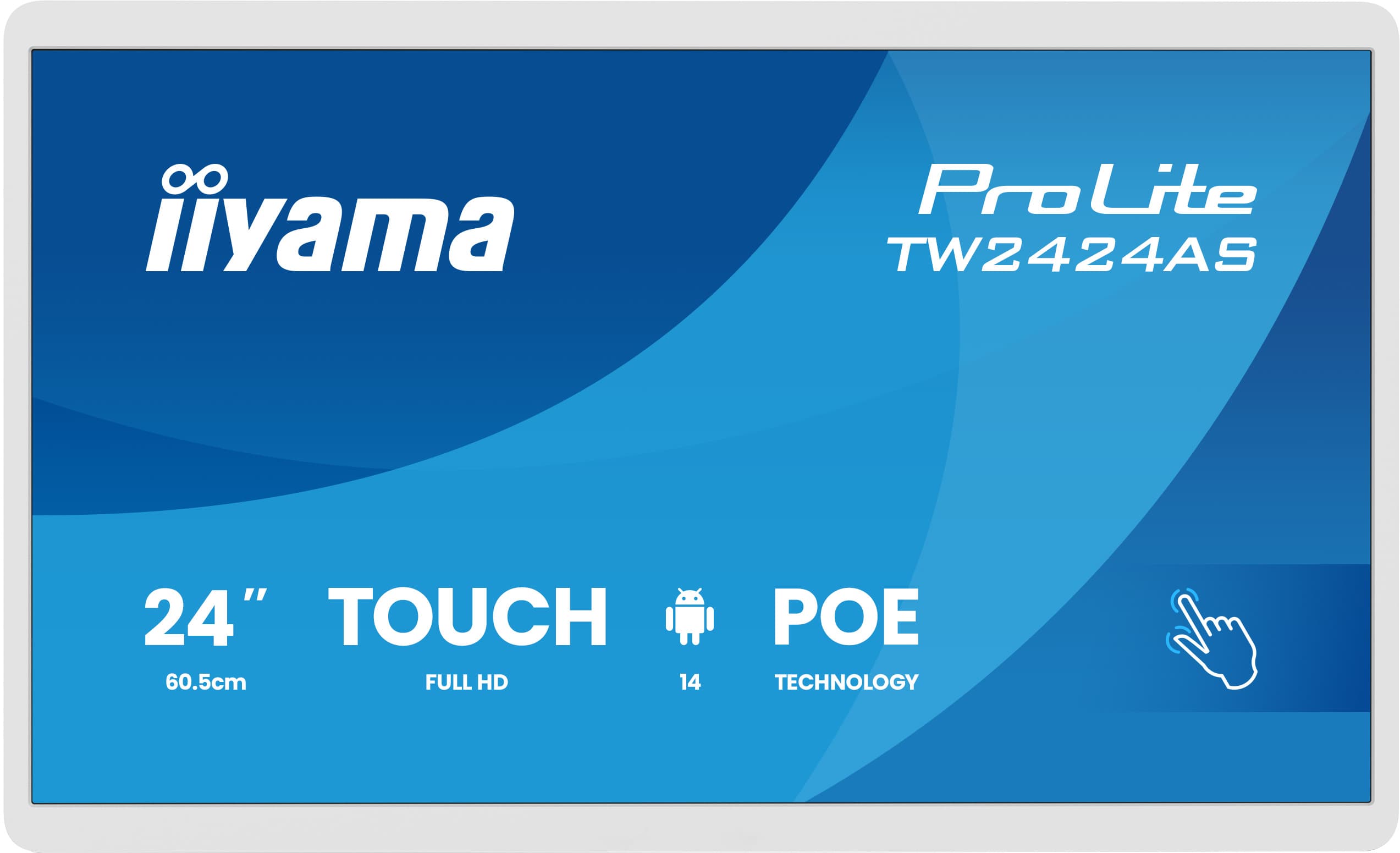

iiyama TW2424AS-W3P 23.8" Touch Panel PC

£446.40inc. VAT
£372.00 ex. VAT
In stock, dispatched within 2 working days
1
  • Visa
  • Mastercard
  • American Express
  • PayPal

Or 3 interest-free payments of £148.80 with PayPal Pay in 3.

4.5 on Trustpilot · 14 reviews

Seen it cheaper? We price-match genuine like-for-like quotes. How it works

Bought in the UK, backed in the UKWhy it matters →
  • In UK stock, ships from the UK
  • UK manufacturer warranty
  • UK-based engineers
  • No import duty or customs charges
  • GBP pricing, UK VAT invoices
Return within 14 days
3 Year Warranty
Installation services available
Key specifications
Cablespower (1.8m)
DesignThin bezel
Diagonal23.8", 60.5cm
PanelIPS
Native resolution1920 x 1080 (2 megapixel HD)
Aspect ratio16:9
Brightness450 cd/m² with touch
Static contrast1000:1 with touch
All 64 specifications
Talk to an Expert

Description

ProLite TW2424AS-W3P 24” Full HD In-cell PCAP 10pt interactive Touch Panel PC with Android OS, IPS panel technology, anti glare coating, PoE Technology and iiSignage² The ProLite TW2424AS-W3P interactive Touchpanel-PC is a perfect choice for high-use environments. The IPS panel, integrated in a slim and elegant bezel, delivers both excellent colour performance with wide viewing angles and noticeably sharper images. The In-cell 10tp PCAP touch technology ensures a fluid and natural touch experience. This monitor can operate in landscape, portrait and face-up orientation in 24/7 operating time. Thanks to the pre-installed Android 14 operating system, it is possible to easily customize the monitor by installing applications directly to it. In combination with the 32GB storage, Wi-Fi connection, LAN (RJ45) and Bluetooth connectors, it makes the monitor especially suited for POS systems or in

Full specifications Datasheet Compare alternatives

Technical specifications

Cablespower (1.8m)
DesignThin bezel
Diagonal23.8", 60.5cm
PanelIPS
Native resolution1920 x 1080 (2 megapixel HD)
Aspect ratio16:9
Brightness450 cd/m² with touch
Static contrast1000:1 with touch
Response time (GTG)14ms
Viewing zonehorizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
Colour support16.7mln 8bit
Horizontal Sync31. - 83.kHz
Viewable area W x H527 x 296.5mm
Pixel pitch0.275mm
Bezel colour and finishwhite, matte
Touch technologyInCell PCAP
Touch points10 (HID, only supported by integrated OS, external OS only support single touch)
Touch methodfinger, glove (latex), capacitive stylus
Touch interfaceUSB
Digital signal inputHDMI x1 (1920x1080 @60Hz)
Digital signal outputUSB-C x1 (1x v. 3.2 (Gen 1, 5Gbit, video output and touch board function – mirror screen))
Audio outputSpeakers 2 x 5W
HDCPyes
USB portsx2 (1x v. 3.2 (Gen 1, 5Gbit; DC5V, 900mA), 1x 2.0 (DC5V, 500mA))
RJ45 (LAN)x1 (PoE - IEEE802.3bt/72W (10/100/1000M))
Microphonex1 (Dual Microphone)
Integrated softwareAndroid 14 with GMS
SOCOcta-core RK3576 (4x A53 + 4x A72)
GPUARM G52 MC3
Storage32GB eMMC
Memory4GB LPDDR4
WiFiIEEE802.11ax/ac/a//b/g/n
Bluetooth5.3
Extraauto-rotation, 2x5W speakers, dual microphone, anti-glare coating, hard coatung 3H, PoE, iiSignage²
Max. non-stop operating time24/7
Anti image retentionyes
Glass hardness6H
OSD key lockyes
Control buttonsPower switch, volume/ button +, volume/ button -
ApplicationsApplications: lock application, manage restart time, manage power on/off time, calculator, calendar, Chrome, alarm/clock/timer/stopwatch, manage files & folders, organize albums, Gmail, Google, iiSignage², play audio files, Play store, system peferences, sound recorder, play video
Flicker freeyes
Orientationlandscape, portrait, face-up
VESA mounting100 x 100mm
Cable management systemyes
MTBF50000 hours (excluding backlight)
Guidesquick start guide, safety guide
OtherAC adapter
Cable coveryes
Power supply unitexternal
Power supplyDC 12 V
Power usage17.5W typical, 0.5W stand by, 0.3W off mode
RegulationsCE, EAC, RoHS support, ErP, WEEE, REACH, UKCA
REACH SVHCabove 0.1%: Lead
Product dimensions W x H x D550 x 336 x 28mm
Box dimensions W x H x D640 x 410 x 121mm
Weight (without box)4.24kg
Weight (with box)6.2kg
EAN code4948570128273
Product seriesProLite TW2424AS-B3P
User manualTW2424AS-B3P_W3P-usermanual-e-revD.pdf
Technical specificationProLite TW2424AS-W3P - gb_en.pdf
DrawingTW2424AS-B3P_W3P_Drawing.pdf
InstructionsTW series API Setup instructions_20251001.zip
CETW2424A CE DoC.pdf
