Home / 10 - 19" Touch Screens / iiyama TF1215MC-B1 12.1" Open Frame Touch Monitor
iiyama

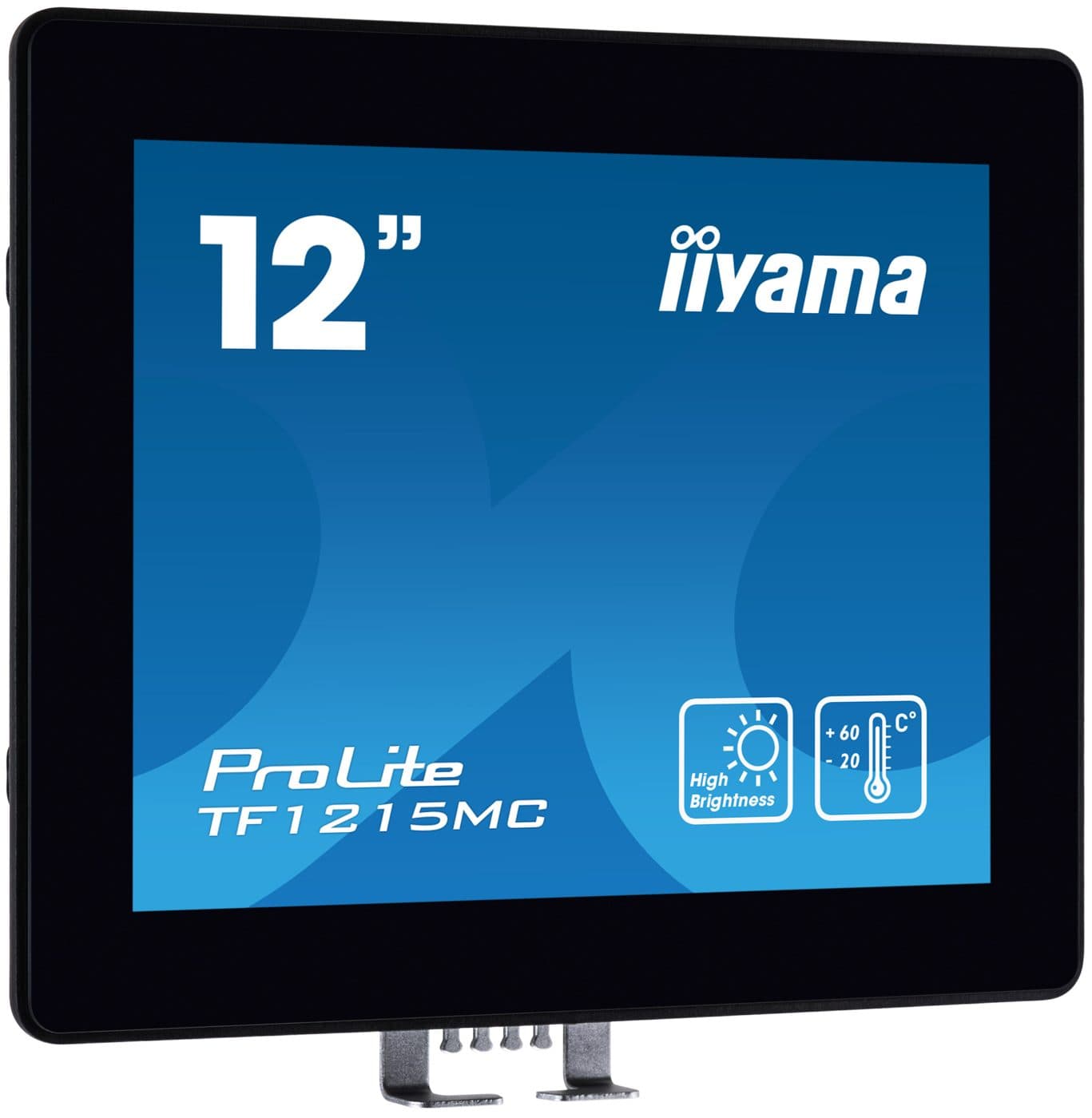

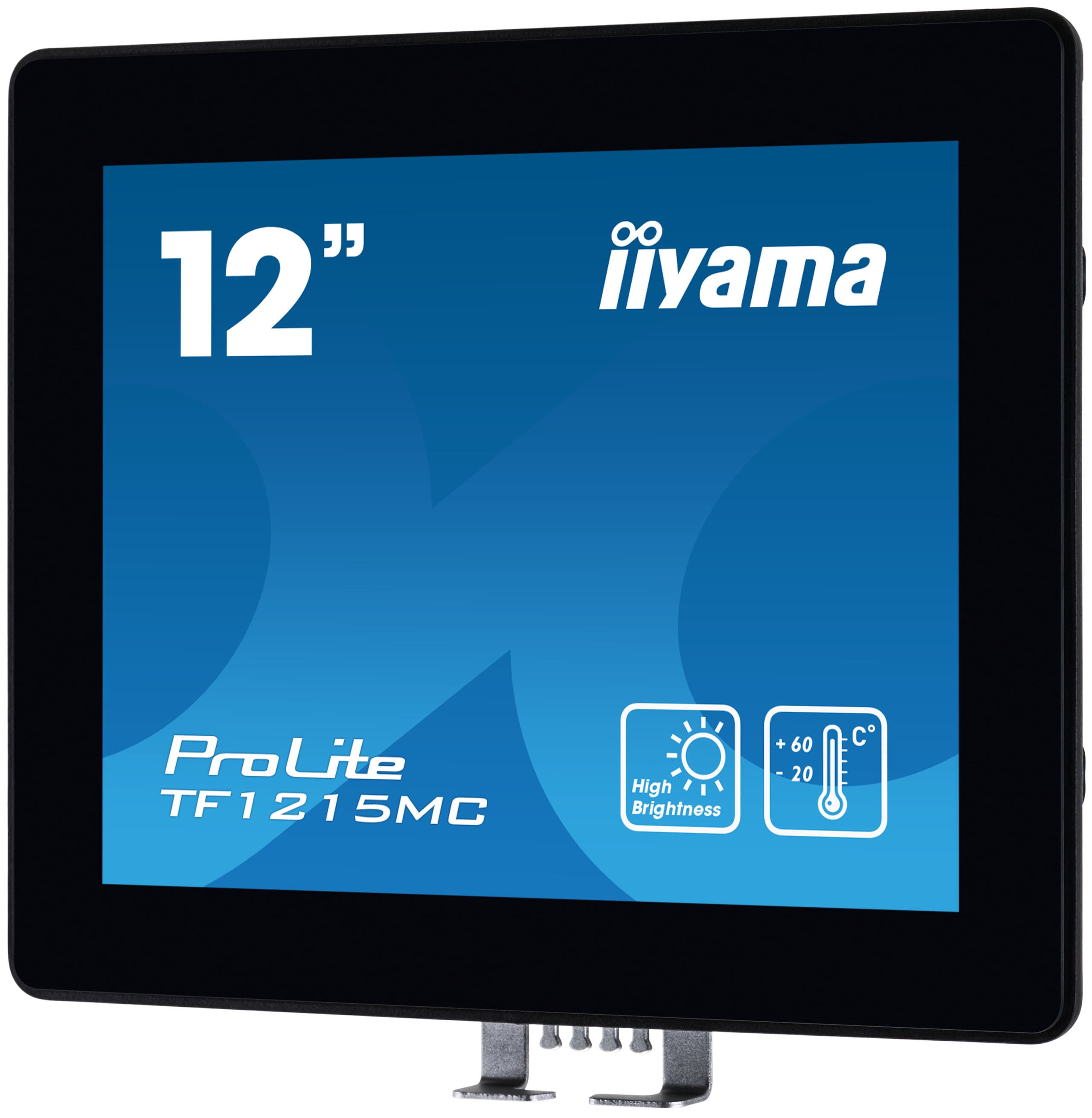

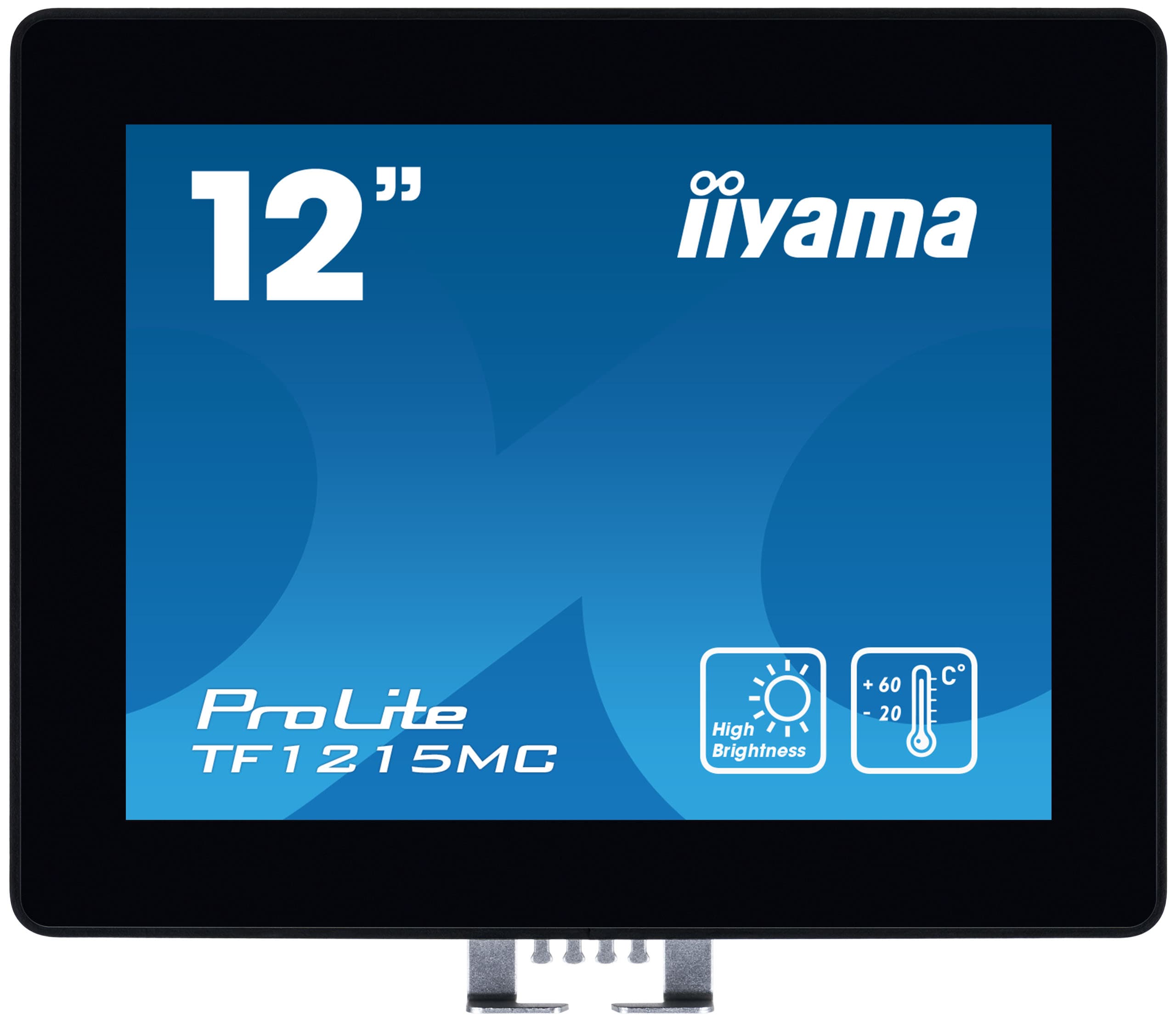

iiyama TF1215MC-B1 12.1" Open Frame Touch Monitor

£486.89inc. VAT
£405.74 ex. VAT
Low stock (5 left), order soon
1
  • Visa
  • Mastercard
  • American Express
  • PayPal

Or 3 interest-free payments of £162.30 with PayPal Pay in 3.

4.5 on Trustpilot · 14 reviews

Seen it cheaper? We price-match genuine like-for-like quotes. How it works

Bought in the UK, backed in the UKWhy it matters →
  • In UK stock, ships from the UK
  • UK manufacturer warranty
  • UK-based engineers
  • No import duty or customs charges
  • GBP pricing, UK VAT invoices
Return within 14 days
3 Year Warranty
Installation services available
Key specifications
DesignOpen Frame
Diagonal12.1", 31cm
PanelIPS Technology
Native resolution1024 x 768 (0.8 megapixel)
Aspect ratio4:3
Panel brightness540 cd/m²
Brightness450 cd/m² with touch
Light transmittance85%
All 64 specifications
Talk to an Expert

Description

ProLite TF1215MC-B1 12.1’’ PCAP 10pt touchscreen solution for pick-up points Built into a rugged, edge-to-edge glass bezel the ProLite TF1215MC-B1 guarantees high durability and scratch-resistance, making it perfect for high use semi-outdoor public facing applications. Landscape, portrait and face-up orientation ensure flexibility in any type of installation. It can operate in temperatures ranging from -20˚C-to 60˚C and is IP65 rated, resulting in dust and water resistance from the front making it a reliable solution for pick-up points and kiosks. For ease of integration, the TF1215MC-B1 can be equipped with optional external mounting brackets (OMK3-1) making it an ideal solution for kiosk integrators, industrial environments, control rooms and interactive multimedia.

Also in this range:10.1" model 15" model 15.6" model 21.5" model Full specifications Datasheet Compare alternatives

Technical specifications

DesignOpen Frame
Diagonal12.1", 31cm
PanelIPS Technology
Native resolution1024 x 768 (0.8 megapixel)
Aspect ratio4:3
Panel brightness540 cd/m²
Brightness450 cd/m² with touch
Light transmittance85%
Static contrast1000:1
Response time (BTB)25ms
Viewing zonehorizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
Colour support16.2mln (6bit + Hi-FRC)
Horizontal Sync31.4 - 60kHz
Viewable area W x H245.8 x 184.3mm, 9.7 x 7.2"
Pixel pitch0.24mm
Bezel colour and finishblack
Touch technologyprojective capacitive
Touch points10 (HID, only with supported OS)
Touch methodfinger, glove (latex), capacitive stylus
Touch interfaceUSB
Supported operating systemsAll iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Through-Glass6mm
Palm rejectionyes
Analog signal inputVGA x1
Digital signal inputHDMI x1DisplayPort x1
Audio outputMini jack x1
HDCPyes
Extraanti-fingerprint coating, touch through-glass
Glass thickness3.15mm
Glass hardness7H
60950 Ball drop testyes
Water and dust protectionIP65 (front)
Water tight sealyes
OSD key lockyes
OSD languagesEN, DE, FR, ES, IT, CN, JP
Control buttonsMenu, Scroll up / Brightness, Scroll down / Contrast, Select, Power
User controlspicture (contrast, brightness, H. position, V. position, phase, clock, auto adjust), advanced (colour temperature, sharpness), OSD (OSD timeout, OSD position, OSD H. position, OSD V. position, touch switch), option (reset, language, source select, display mode, factory)
Plug&PlayDDC2B
Orientationlandscape, portrait, face-up
VESA mounting100 x 100mm
Operation temperature range (-°/+°)-20°C - 60°C
Storage temperature range- 20°C - 60°C
Cablespower, USB, HDMI, DP
Guidesquick start guide, safety guide
OtherAC adapter, external control pad
Remote controlexternal control pad
Power supply unitexternal
Power supplyDC 12 V
Power usage10W typical, 0.55W stand by, 0.5W off mode
RegulationsCE, EAC, RoHS support, ErP, WEEE, cULus, REACH
Energy efficiency class (Regulation (EU) 2017/1369)F
Product dimensions W x H x D308.5 x 248 x 41.5mm
Box dimensions W x H x D435 x 355 x 165mm
Weight (without box)2.1kg
Weight (with box)3.9kg
EAN code4948570118007
Mounts / Stands / BracketsOMK3-1
Related productsOMK3-1
User manualTF10_15_22_2415MC-B2_A_B_1215MC-B1A_1615MC-B1-usermanual-e-revK.pdf
Technical specificationProLite TF1215MC-B1 - gb_en.pdf
DrawingTF1215MC-B1 drawing.pdf
EU Energy LabelTF1215MC-B1 EU Energy Label pdf data (356882).pdf
UK Energy LabelTF1215MC-B1 UK Energy Label pdf data (356882).pdf
CETF1215MC-1B CE DoC.pdf
