Home / 10 - 19" Touch Screens / iiyama TF1534MC-B8X 15" Open Frame Touch Monitor
iiyama

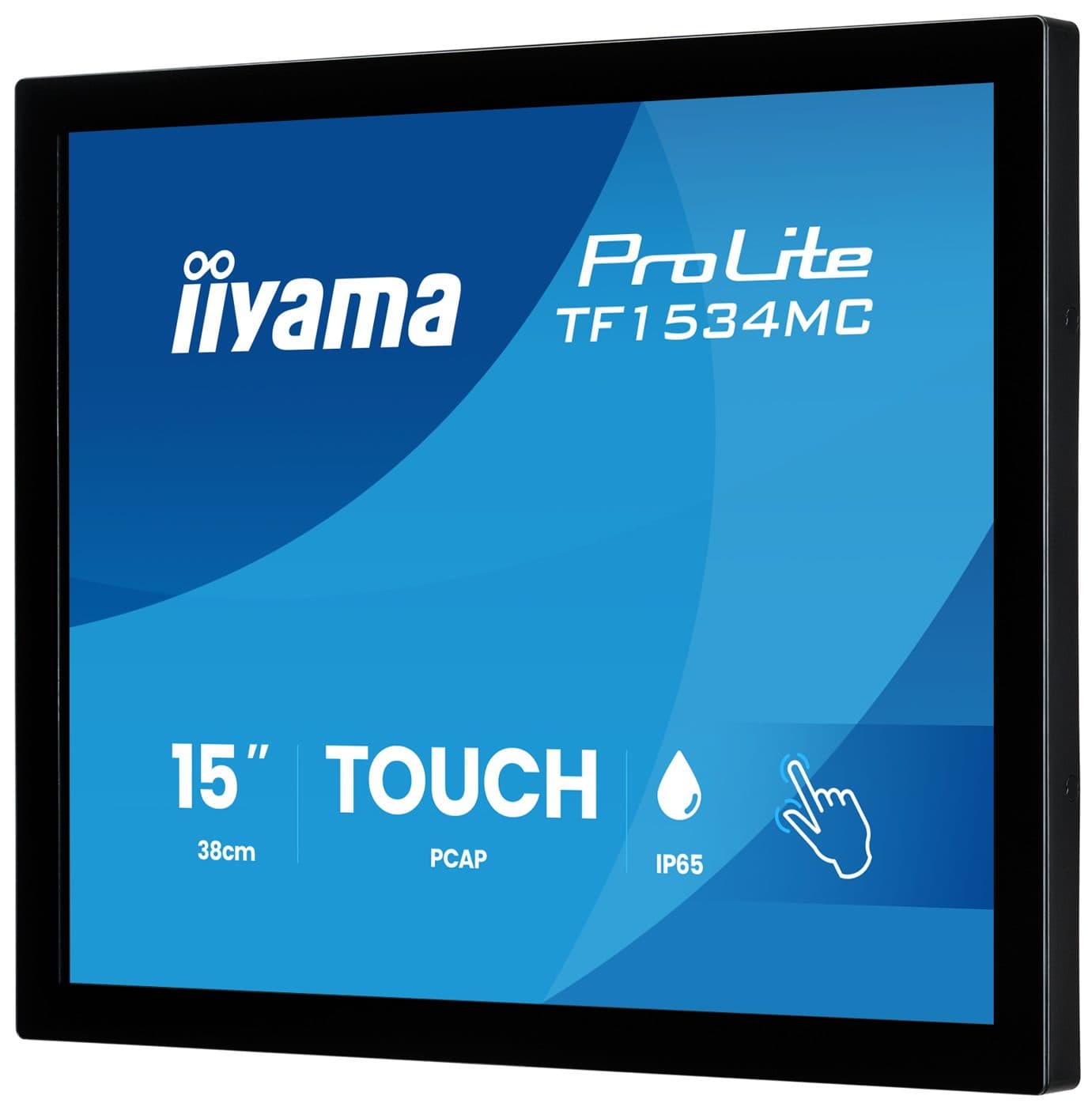

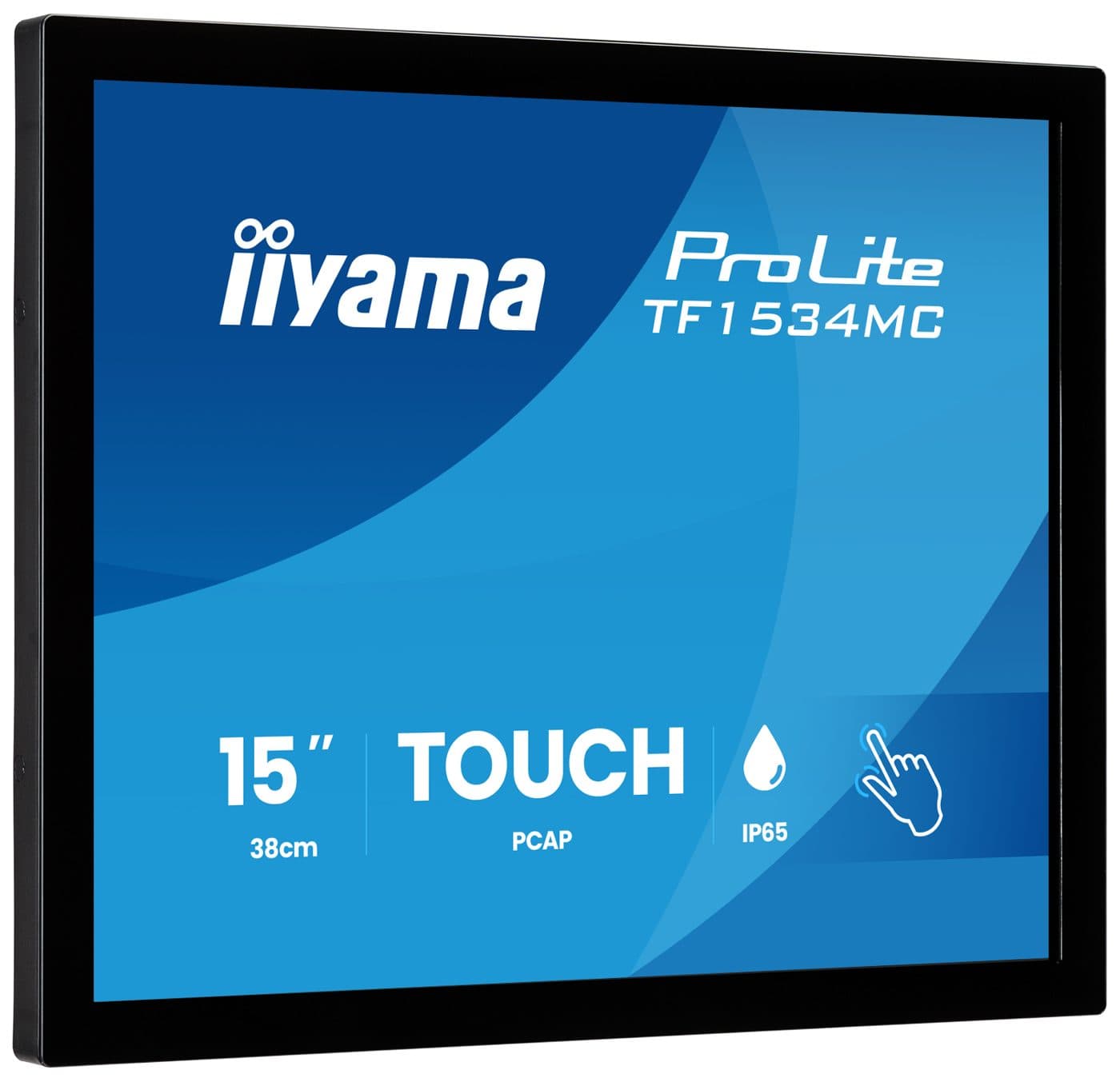

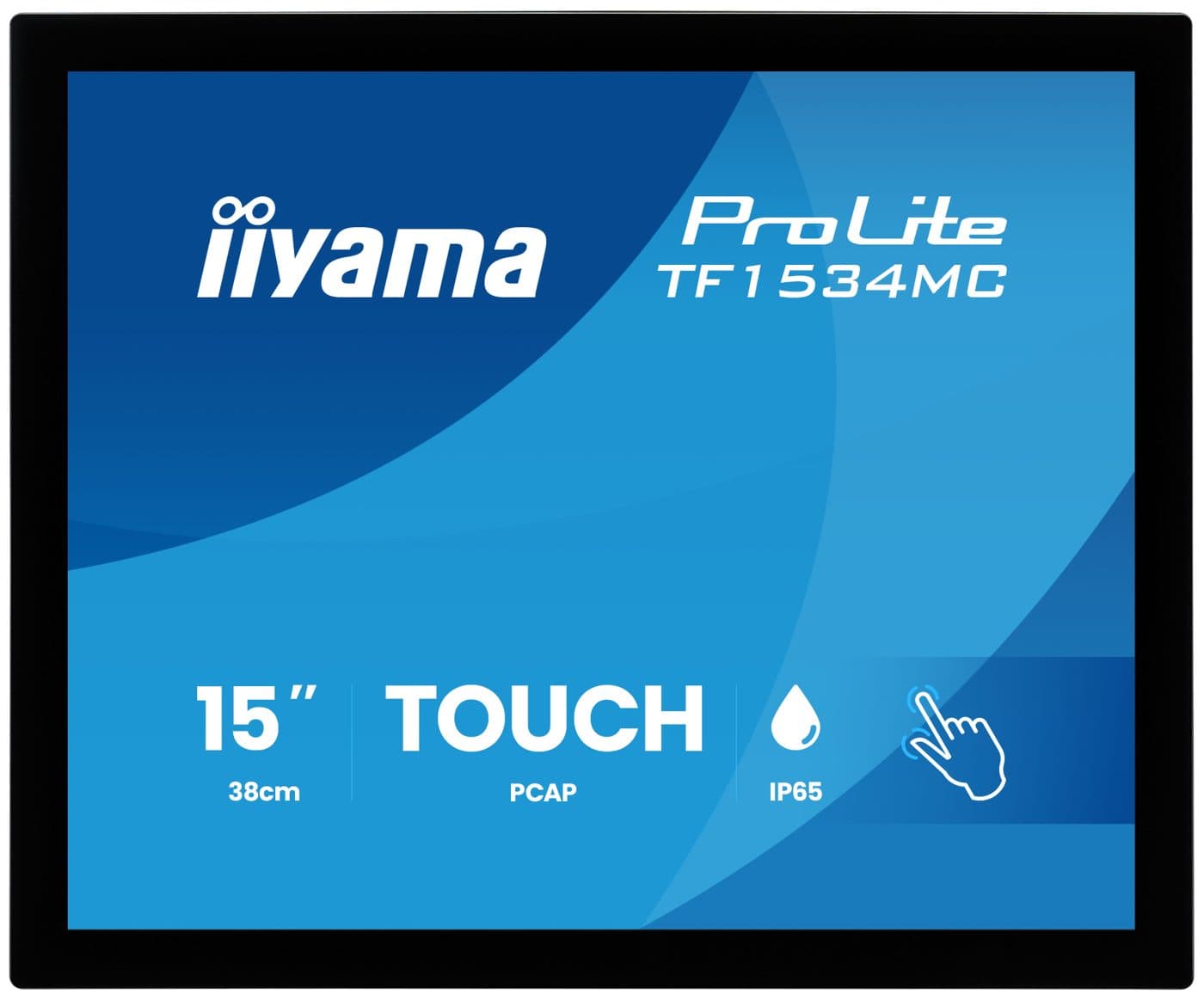

iiyama TF1534MC-B8X 15" Open Frame Touch Monitor

£428.53inc. VAT
£357.11 ex. VAT
In stock, dispatched within 2 working days
1
  • Visa
  • Mastercard
  • American Express
  • PayPal

Or 3 interest-free payments of £142.85 with PayPal Pay in 3.

4.5 on Trustpilot · 14 reviews

Seen it cheaper? We price-match genuine like-for-like quotes. How it works

Bought in the UK, backed in the UKWhy it matters →
  • In UK stock, ships from the UK
  • UK manufacturer warranty
  • UK-based engineers
  • No import duty or customs charges
  • GBP pricing, UK VAT invoices
Return within 14 days
3 Year Warranty
Installation services available
Key specifications
DesignEdge to edge glass, Open Frame
Diagonal15", 38cm
PanelTN
Native resolution1024 x 768 @75Hz (0.8 megapixel)
Aspect ratio4:3
Panel brightness350 cd/m²
Brightness300 cd/m² with touch
Light transmittance86%
All 62 specifications
Talk to an Expert

Description

ProLite TF1534MC-B8X 15” Open Frame touchscreen monitor with edge-to-edge glass and Touch Through-Glass function for flexible integration The ProLite TF1534MC-B8X is a 15” Open Frame touchscreen monitor designed for integration into kiosks, retail systems, interactive displays and custom installations. Its 10-point PCAP touch technology provides accurate multi-touch operation, while the edge-to-edge glass surface offers durability, scratch resistance and a clean, professional appearance.With IP65-rated front protection, the screen is resistant to dust and splashing water from the front, making it suitable for demanding public and commercial environments. The anti-fingerprint coating helps keep the display clear and easy to use, even with frequent interaction.For applications requiring additional protection, the Touch Through-Glass function allows reliable touch operation through a glass

Also in this range:17" model 19" model 21.5" model Full specifications Datasheet Compare alternatives

Technical specifications

DesignEdge to edge glass, Open Frame
Diagonal15", 38cm
PanelTN
Native resolution1024 x 768 @75Hz (0.8 megapixel)
Aspect ratio4:3
Panel brightness350 cd/m²
Brightness300 cd/m² with touch
Light transmittance86%
Static contrast800:1
Response time (BTB)8ms
Viewing zonehorizontal/vertical: 170°/160°, right/left: 85°/85°, up/down: 80°/80°
Colour support16.2mln (6bit + Hi-FRC)
Horizontal Sync31 - 60kHz
Viewable area W x H304 x 228mm, 12 x 9"
Pixel pitch0.297mm
Bezel colour and finishblack, matte
Touch technologyprojective capacitive
Touch points10 (HID, only with supported OS)
Touch accuracy+- 2mm
Touch methodstylus, finger, glove (latex)
Touch interfaceUSB
Supported operating systemsAll iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Through-Glass6mm
Palm rejectionyes
Analog signal inputVGA x1
Digital signal inputHDMI x1DisplayPort x1
HDCPyes
Extraanti-fingerprint coating, touch through-glass
Glass hardness7H
60950 Ball drop testyes
Water and dust protectionIP65 (front)
OSD key lockyes
OSD languagesEN, DE, FR, ES, IT, CN, JP
Control buttonsMenu, Scroll up/ Brightness, Scroll down/ Contrast, Select, Power
User controlspicture (contrast, brightness, H.position, V.position, phase, clock, auto adjust), advanced (color temp., sharpness), OSD (time out, position, H-position, V-position, Touch switch), option (reset, language, source select, display mode, factory)
ConvenienceKensington-lock™ prepared
Plug&PlayDDC2B
Orientationlandscape, portrait, face-up
VESA mounting100 x 100mm
MTBF50000 hours
Cablespower (1.8m), USB (1.8m), HDMI (1.8m), DP (1.8m)
Guidesquick start guide, safety guide
OtherAC adapter
Cable coveryes
Power supply unitexternal
Power supplyDC 12 V
Power usage9W typical, 1.5W stand by, 0.3W off mode
RegulationsCE, EAC, RoHS support, ErP, WEEE, cULus, REACH, UKCA
Energy efficiency class (Regulation (EU) 2017/1369)D
REACH SVHCabove 0.1%: Lead, Lead monoxide, Boric acid
Product dimensions W x H x D338 x 267 x 45mm
Box dimensions W x H x D355 x 165 x 435mm
Pallet dimensions W x H x D910 x 2430 x 1140mm
Weight (without box)2.7kg
Weight (with box)4kg
EAN code4948570127801
Related productsRC TOUCHV01, OMK1-1
User manualTF15_17_1934MC-B8X-usermanual-e-revB.pdf
Technical specificationProLite TF1534MC-B8X - gb_en.pdf
DrawingTF1534MC_drawing.pdf
EU Energy LabelTF1534MC-B8X EU Energy Label (1018965).pdf
UK Energy LabelTF1534MC-B8X UK Energy Label (1018965).pdf
