Home / 10 - 19" Touch Screens / iiyama TF1734MC-B8X 17" Open Frame Touch Monitor
iiyama

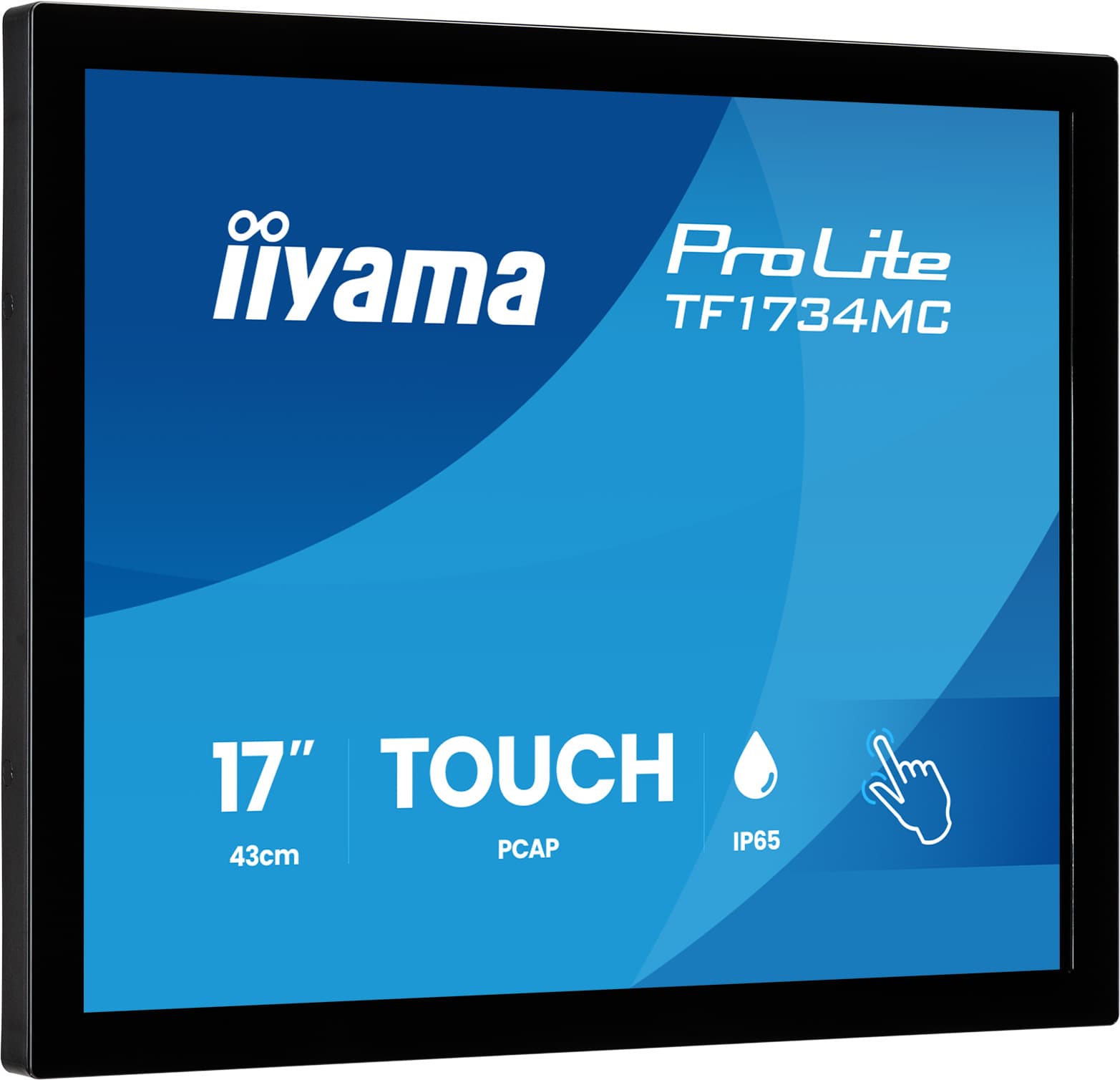

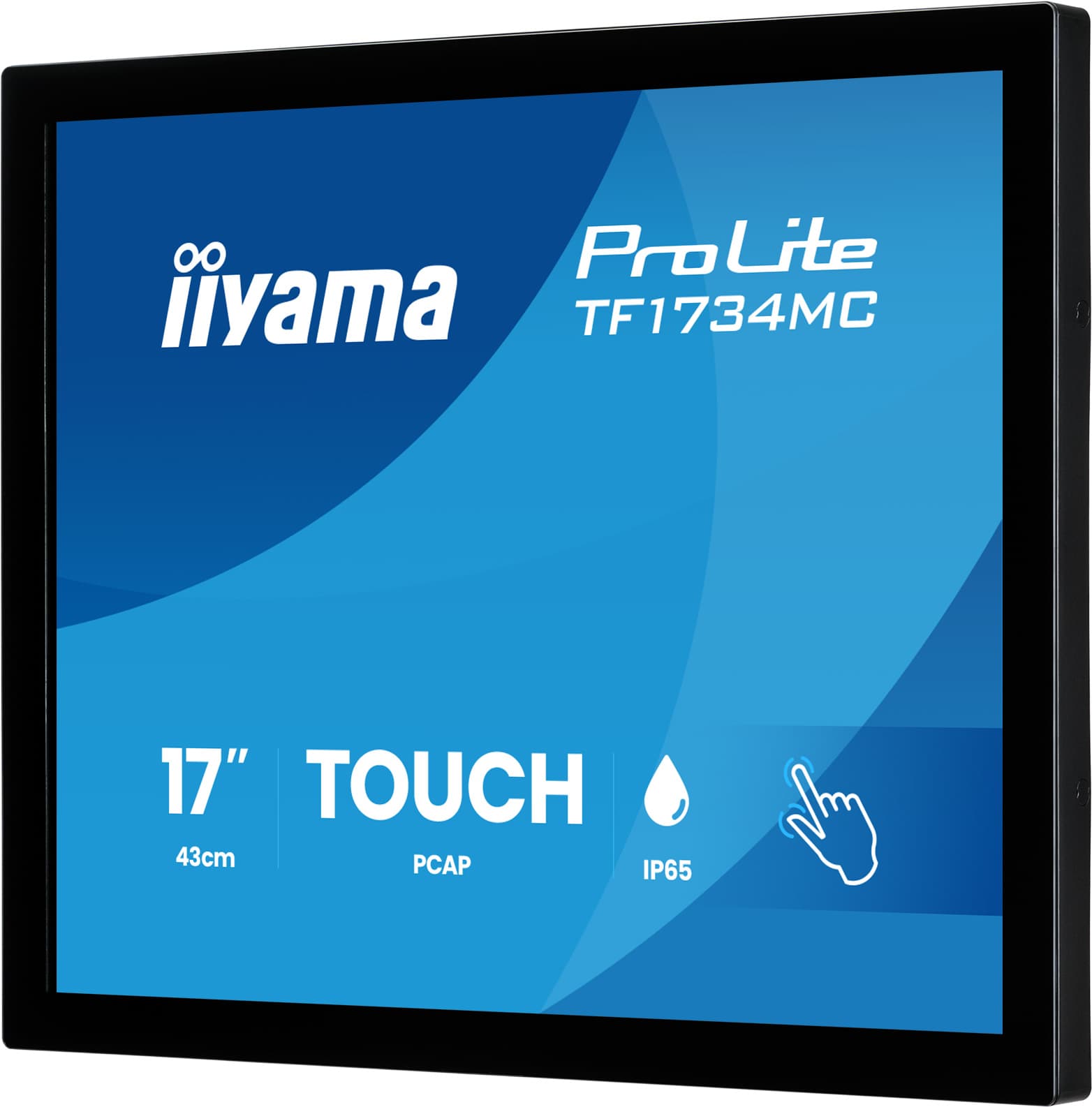

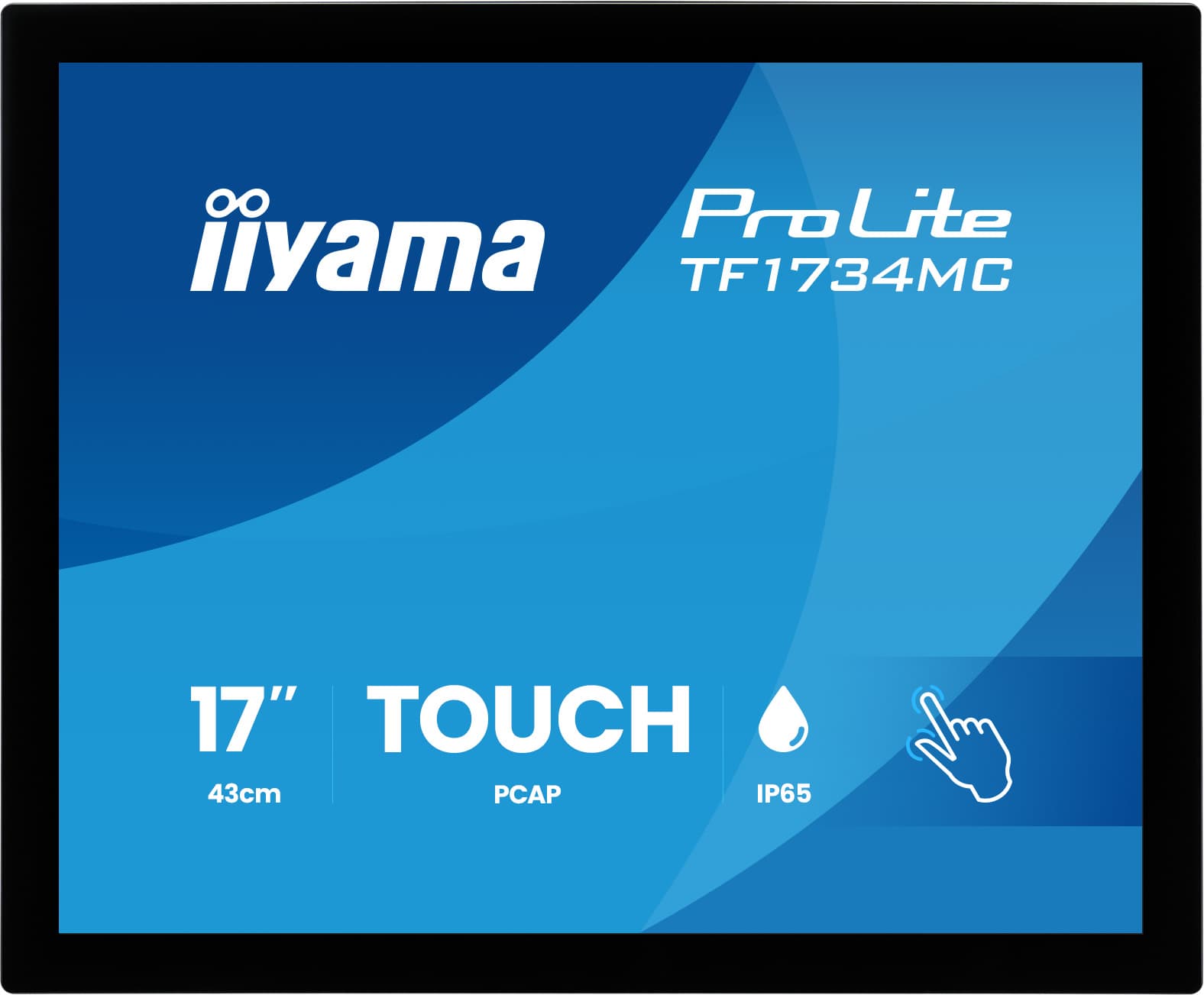

iiyama TF1734MC-B8X 17" Open Frame Touch Monitor

£573.44inc. VAT
£477.87 ex. VAT
Low stock (5 left), order soon
1
  • Visa
  • Mastercard
  • American Express
  • PayPal

Or 3 interest-free payments of £191.15 with PayPal Pay in 3.

4.5 on Trustpilot · 14 reviews

Seen it cheaper? We price-match genuine like-for-like quotes. How it works

Bought in the UK, backed in the UKWhy it matters →
  • In UK stock, ships from the UK
  • UK manufacturer warranty
  • UK-based engineers
  • No import duty or customs charges
  • GBP pricing, UK VAT invoices
Return within 14 days
3 Year Warranty
Installation services available
Key specifications
DesignEdge to edge glass, Open Frame
Diagonal17", 43cm
PanelTN
Native resolution1280 x 1024 @75Hz (1.3 megapixel)
Aspect ratio5:4
Panel brightness350 cd/m²
Brightness300 cd/m² with touch
Light transmittance85%
All 57 specifications
Talk to an Expert

Description

ProLite TF1734MC-B8X 17” Open Frame touchscreen monitor with edge-to-edge glass and Touch Through-Glass function for flexible integration The ProLite TF1734MC-B8X is a 17” Open Frame touchscreen monitor designed for integration into kiosks, retail systems, interactive displays and custom installations. Its 10-point PCAP touch technology provides accurate multi-touch operation, while the edge-to-edge glass surface offers durability, scratch resistance and a clean, professional appearance.With IP65-rated front protection, the screen is resistant to dust and splashing water from the front, making it suitable for demanding public and commercial environments. The anti-fingerprint coating helps keep the display clear and easy to use, even with frequent interaction.For applications requiring additional protection, the Touch Through-Glass function allows reliable touch operation through a glass

Also in this range:15" model 19" model 21.5" model Full specifications Datasheet Compare alternatives

Technical specifications

DesignEdge to edge glass, Open Frame
Diagonal17", 43cm
PanelTN
Native resolution1280 x 1024 @75Hz (1.3 megapixel)
Aspect ratio5:4
Panel brightness350 cd/m²
Brightness300 cd/m² with touch
Light transmittance85%
Static contrast1000:1 with touch
Response time (BTB)5ms
Viewing zonehorizontal/vertical: 170°/160°, right/left: 85°/85°, up/down: 80°/80°
Colour support16.7mln
Horizontal Sync31 - 80kHz
Viewable area W x H338 x 270mm, 13.3 x 10.6"
Pixel pitch0.264mm
Bezel colour and finishblack, matte
Touch technologyprojective capacitive
Touch points10 (HID, only with supported OS)
Touch accuracy+- 2mm
Touch methodstylus, finger, glove (latex)
Touch interfaceUSB
Through-Glass6mm
Palm rejectionyes
Analog signal inputVGA x1
Digital signal inputHDMI x1DisplayPort x1
Extraanti-fingerprint coating, touch through-glass
Glass thickness3mm
60950 Ball drop testyes
Water and dust protectionIP65 (front)
OSD key lockyes
OSD languagesEN, DE, FR, ES, IT, PT, RU, JP, NL, PL
Control buttonsMenu, Scroll up/ Brightness, Scroll down/ Contrast, Select, Power
User controlspicture (contrast, brightness, H.position, V.position, phase, clock, auto adjust), advanced (color temp., sharpness), OSD (time out, position, H-position, V-position, Touch switch), option (reset, language, source select, display mode, factory)
Plug&PlayDDC2B
Orientationlandscape, portrait, face-up
VESA mounting100 x 100mm
Cablespower (1.8m), USB (1.8m), HDMI (1.8m), DP (1.8m)
Guidesquick start guide, safety guide
OtherAC adapter
Cable coveryes
Power supply unitexternal
Power supplyDC 12 V
Power usage13W typical, 1.5W stand by, 0.3W off mode
RegulationsCE, EAC, RoHS support, ErP, WEEE, cULus, REACH, UKCA
Energy efficiency class (Regulation (EU) 2017/1369)E
REACH SVHCabove 0.1%: Lead, Lead monoxide, Boric acid
Product dimensions W x H x D369 x 307 x 47.5mm
Box dimensions W x H x D387 x 145 x 455mm
Weight (without box)3.6kg
Weight (with box)5.2kg
EAN code4948570127818
Related productsRC TOUCHV01, OMK1-1
User manualTF15_17_1934MC-B8X-usermanual-e-revB.pdf
Technical specificationProLite TF1734MC-B8X - gb_en.pdf
DrawingTF1734MC_drawing.pdf
EU Energy LabelTF1734MC-B8X EU Energy Label (2613446).pdf
UK Energy LabelTF1734MC-B8X UK Energy Label (2613446).pdf
